P_2x3B_011

P_2x3B_011_A

Production testing

Date:7/3/2007

Operator: Gino Bolla

start testing time:12:42 PM

Sensor: S_2x3B_01, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 X74JP0T 68A

ROC1 X74JP0T 67D

ROC2 X74JP0T 67C

ROC3 X74JP0T 46B

ROC4 X74JP0T 46C

ROC5 X74JP0T 47A

ROC	ROC wafer	Label
ROC0	X74JP0T	68A
ROC1	X74JP0T	67D
ROC2	X74JP0T	67C
ROC3	X74JP0T	46B
ROC4	X74JP0T	46C
ROC5	X74JP0T	47A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 170 154 154 150 150 150

Vana, VanaData 137 125 127 106 114 131

CalDelData and plots 75 82 85 90 87 96

VthrCompData and plots 89 86 88 71 69 82

TestDdata ,TestD Plots 168 0 1 96 539 1368

LightData ,Light Plots 0 0 0 0 1 0

Pass/Fail TestD BAD GOOD GOOD BAD BAD BAD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

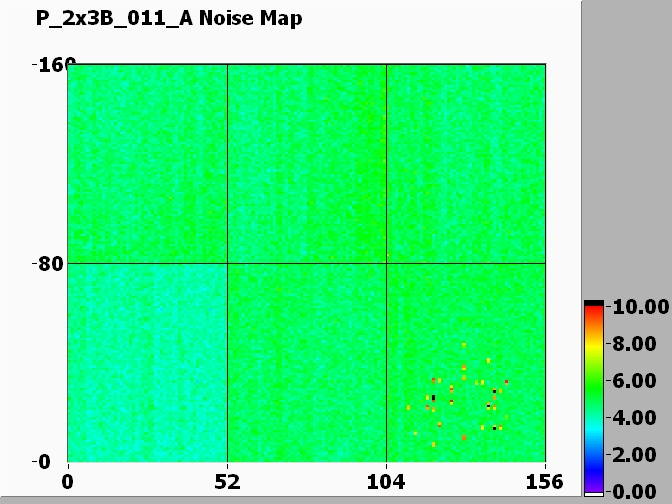

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	120	130	135	145	150	115
Vsf	145	140	140	125	130	140
VoffsetOp	90	60	60	35	55	70
VIbias_PH	100	105	100	95	105	105

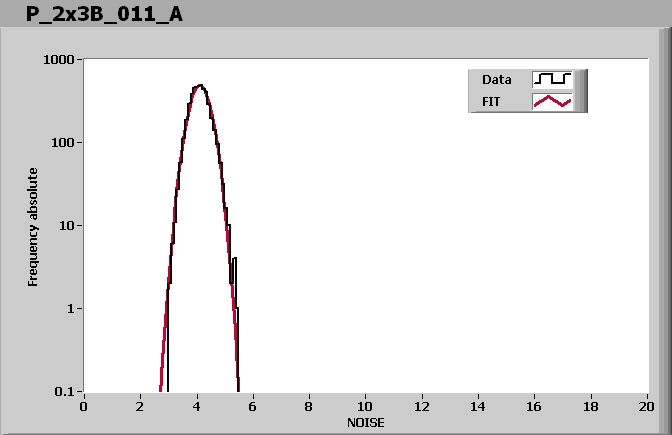

ROC0 NOISE			MEAN = 4.105753 SIGMA = 0.338175
ROC1 NOISE			MEAN = 4.714029 SIGMA = 0.364926

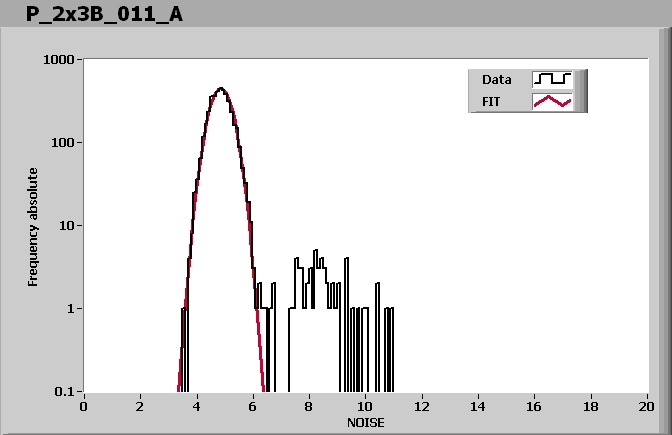

ROC2 NOISE			MEAN = 4.850294 SIGMA = 0.365220
ROC3 NOISE			MEAN = 4.751171 SIGMA = 0.412156

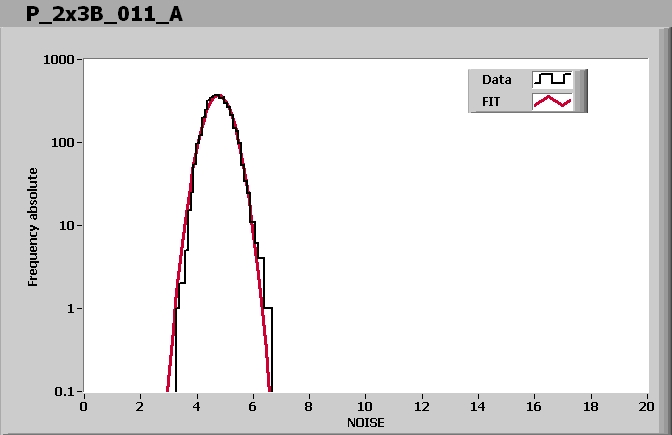

ROC4 NOISE			MEAN = 4.767397 SIGMA = 0.448042
ROC5 NOISE			MEAN = 4.652412 SIGMA = 0.394353

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:04 PM

Ibias_DAC, Ibias_DAC Data	170	154	154	150	150	150
Vana, VanaData	137	125	127	106	114	131
CalDelData and plots	75	82	85	90	87	96
VthrCompData and plots	89	86	88	71	69	82
TestDdata ,TestD Plots	168	0	1	96	539	1368
LightData ,Light Plots	0	0	0	0	1	0
Pass/Fail TestD	BAD	GOOD	GOOD	BAD	BAD	BAD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
