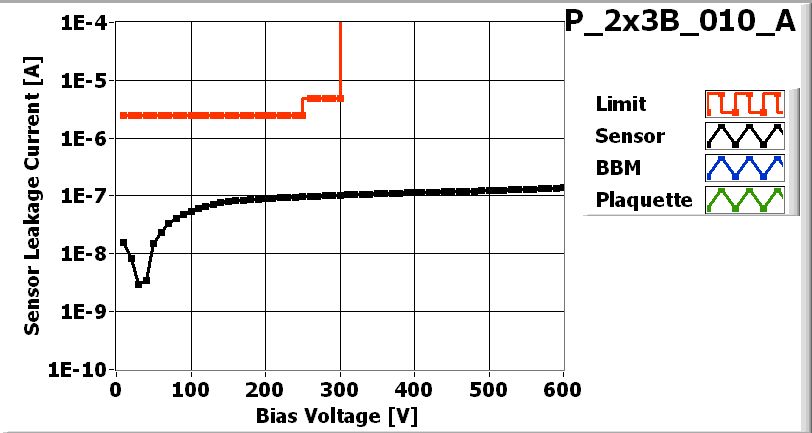

![[IMAGE] of](P_2x3B_010_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_010_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_010-2x3B |
| VHDI | 2x3_269 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X54JP2T | 06B |
| ROC1 | X54JP2T | 06A |
| ROC2 | X54JP2T | 05D |
| ROC3 | X54JP2T | 06C |
| ROC4 | X54JP2T | 03A |
| ROC5 | X74JP0T | 06C |
Inspected by Arndt Kirk on date 2006-07-20
| LR_dev | 0.051 |
| LL_dev | 0.050 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-20 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-31 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 163 | 163 | 173 | 163 | 151 | 159 | |
| Vana | 126 | 112 | 122 | 133 | 111 | 120 | |
| Cal_Del | 103 | 87 | 93 | 96 | 103 | 89 | |
| Vthrs_Comp | 84 | 77 | 82 | 83 | 64 | 68 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 1 | 0 | |
| Total BAD | 0 | 1 | 0 | 1 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

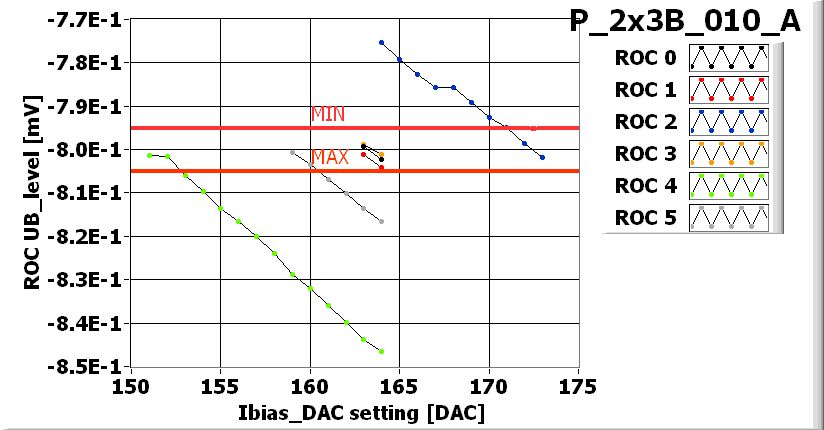

![[IMAGE] of](P_2x3B_010_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

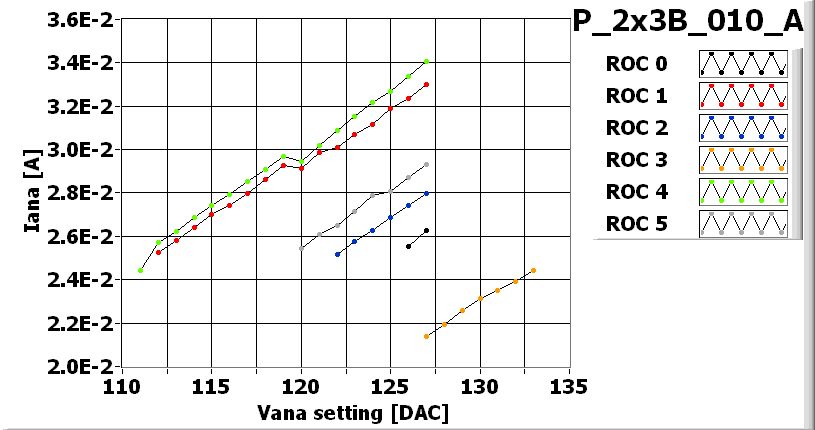

![[IMAGE] of](P_2x3B_010_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_010_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_010_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_010_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_010_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-01
