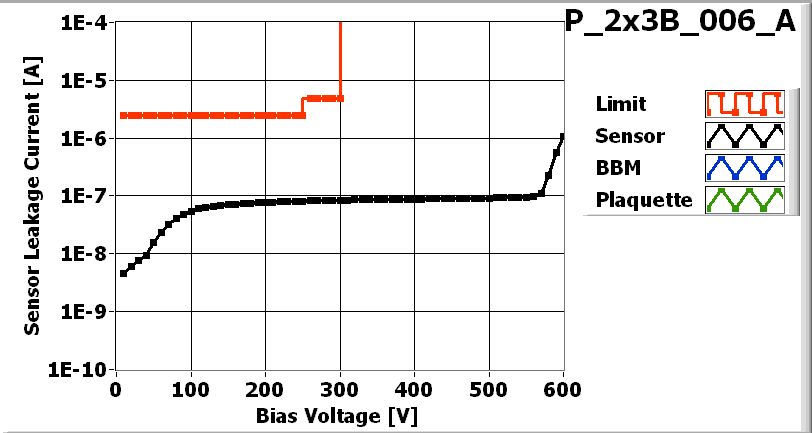

![[IMAGE] of](P_2x3B_006_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

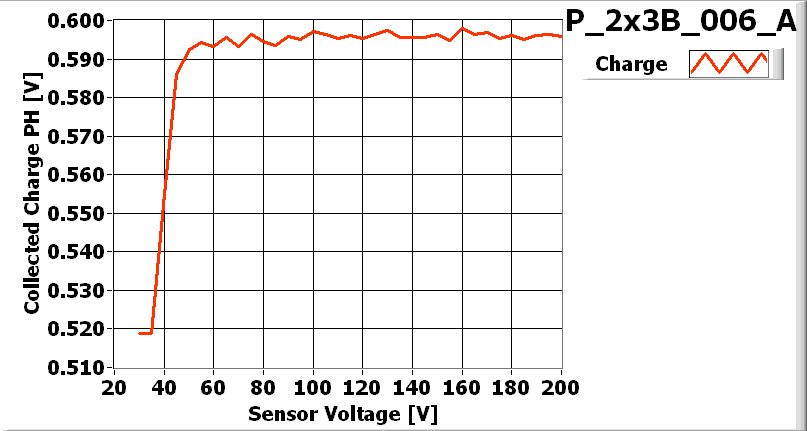

![[IMAGE] of](P_2x3B_006_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_006-2x3B |
| VHDI | 2x3_235 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 63B |
| ROC1 | X74JP0T | 63A |
| ROC2 | X74JP0T | 62C |
| ROC3 | X74JP0T | 44A |
| ROC4 | X74JP0T | 44B |
| ROC5 | X74JP0T | 44C |
Inspected by Arndt Kirk on date 2006-06-27
| LR_dev | 0.029 |
| LL_dev | 0.023 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-27 by Arndt Kirk
PLAQUETTE TESTED on 2006-6-27 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 173 | 165 | 162 | 174 | 155 | 170 | |
| Vana | 116 | 144 | 124 | 131 | 132 | 129 | |
| Cal_Del | 83 | 84 | 89 | 74 | 82 | 72 | |
| Vthrs_Comp | 80 | 87 | 78 | 83 | 77 | 82 | |
| Unbumped | 0 | 1 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 1 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

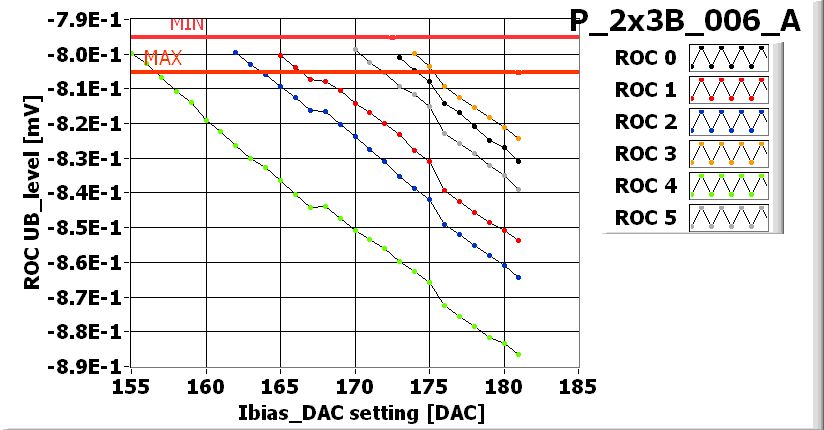

![[IMAGE] of](P_2x3B_006_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

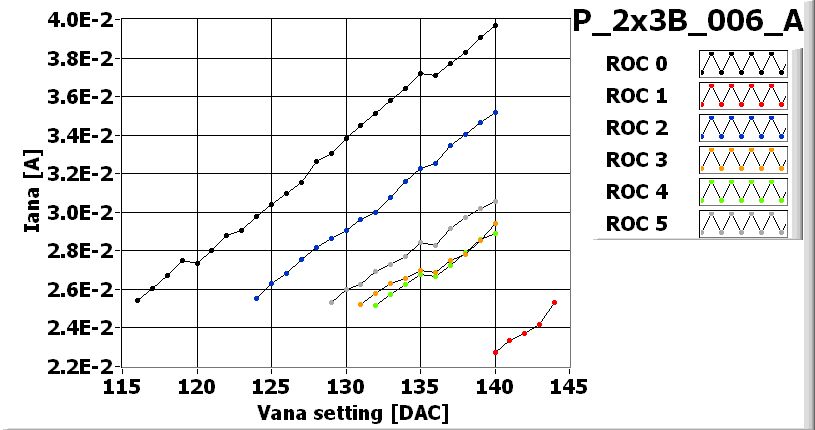

![[IMAGE] of](P_2x3B_006_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_006_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_006_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_006_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_006_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-10
