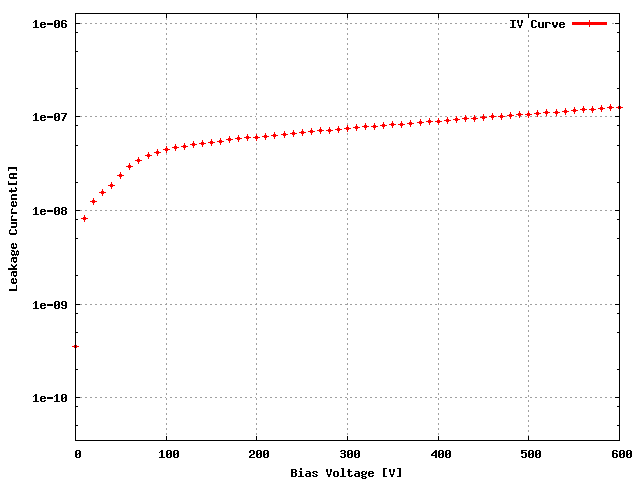

Sensor: S_1x5R_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KNNG0DT | 18D |
| ROC1 | KNNG0DT | 18A |
| ROC2 | KNNG0DT | 28B |
| ROC3 | KNNG0DT | 38D |
| ROC4 | KNNG0DT | 38C |
| Ibias_DAC, Ibias_DAC Data | 128 | 146 | 130 | 132 | 144 |
| Vana, VanaData | 129 | 141 | 135 | 129 | 133 |
| CalDelData and plots | 75 | 79 | 82 | 77 | 83 |
| VthrCompData and plots | 68 | 75 | 75 | 66 | 75 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 0 | 0 | 4 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x5R_167_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_167_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 105 | 95 | 110 | 115 | 100 |
| Vsf | 140 | 140 | 140 | 140 | 140 |
| VoffsetOp | 70 | 95 | 85 | 90 | 90 |
| VIbias_PH | 95 | 100 | 100 | 105 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC0-HISTO.jpg) | MEAN = 5.197868SIGMA = 0.426552 |

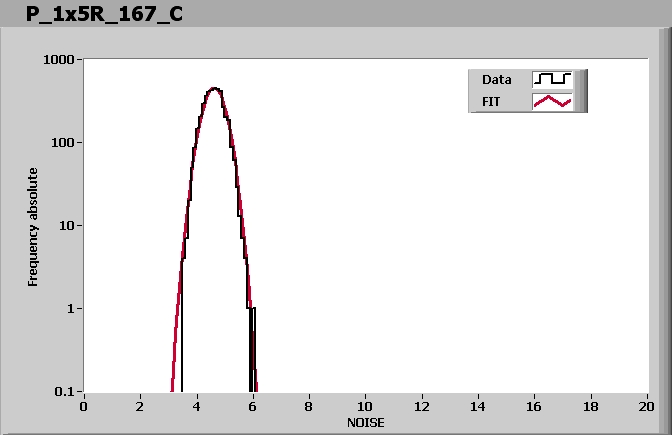

| ROC1 NOISE | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.611321SIGMA = 0.368845 |

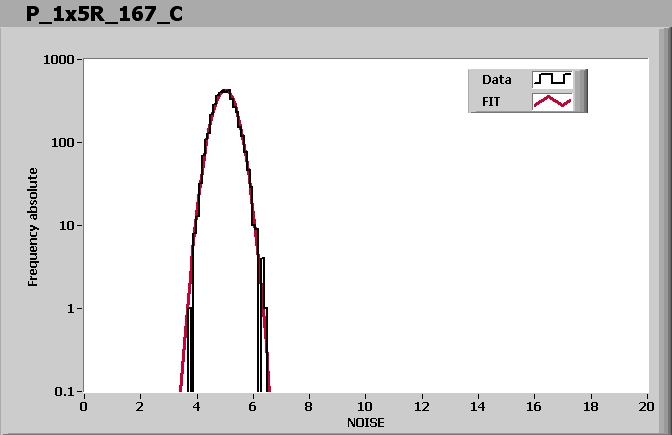

| ROC2 NOISE | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC2-HISTO.jpg) | MEAN = 4.999591SIGMA = 0.386500 |
| ROC3 NOISE | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC3-HISTO.jpg) | MEAN = 5.026627SIGMA = 0.398775 |

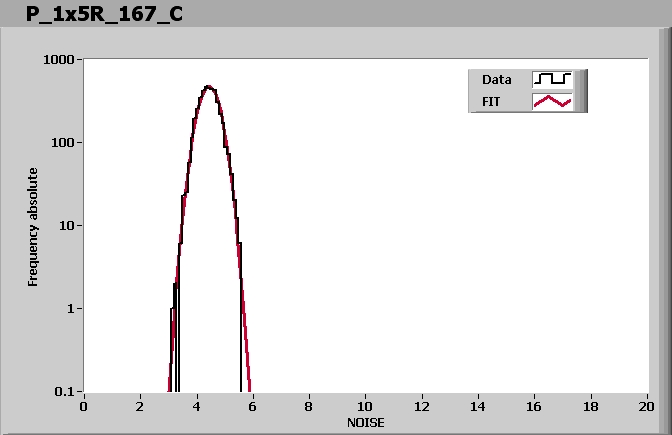

| ROC4 NOISE | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_1x5R_167_C-580-noise-ROC4-HISTO.jpg) | MEAN = 4.431279SIGMA = 0.347620 |
Comment (if any): good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:38 AM
