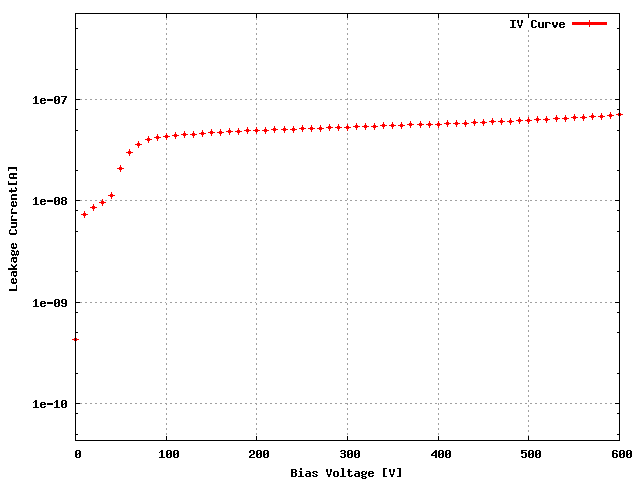

Sensor: S_1x5R_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 23A |
| ROC1 | W21_XA4KFIT | 22D |
| ROC2 | W21_XA4KFIT | 22C |
| ROC3 | W21_XA4KFIT | 22A |
| ROC4 | W21_XA4KFIT | 21D |
| Ibias_DAC, Ibias_DAC Data | 141 | 136 | 141 | 139 | 144 |
| Vana, VanaData | 127 | 127 | 142 | 129 | 127 |
| CalDelData and plots | 69 | 68 | 86 | 86 | 89 |
| VthrCompData and plots | 86 | 85 | 74 | 87 | 75 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 123 | 192 | 21 | 1 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | BAD | BAD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): over 300 dead pixels, again along the edges between ROCs. Is this specifically a problem with 1x5's ???
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:17 PM
