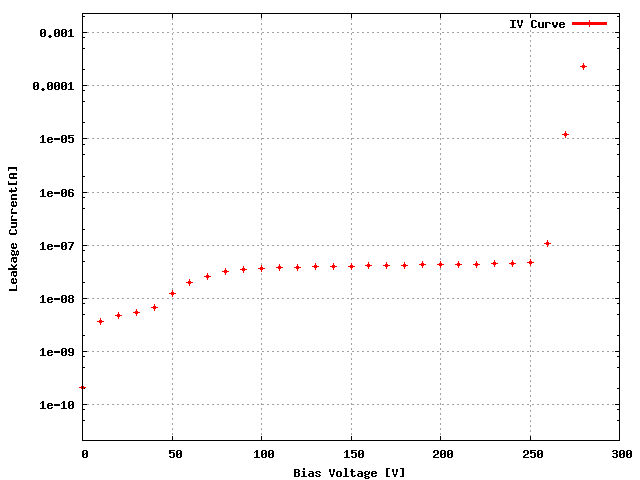

Sensor: S_1x5R_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 63B |
| ROC1 | W28_X54K5TT | 63A |
| ROC2 | W28_X54K5TT | 62C |
| ROC3 | W28_X54K5TT | 62B |
| ROC4 | W28_X54K5TT | 62A |
| Ibias_DAC, Ibias_DAC Data | 134 | 138 | 126 | 146 | 152 |
| Vana, VanaData | 132 | 132 | 131 | 127 | 139 |
| CalDelData and plots | 100 | 99 | 90 | 80 | 72 |
| VthrCompData and plots | 69 | 79 | 83 | 79 | 85 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 3989 | 0 | 0 | 1 | 12 |
| LightData ,Light Plots | 4157 | 0 | 0 | 0 | 3 |
| Pass/Fail TestD | BAD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | BAD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): ROC0 still DEAD.
This Device have been tested 2Times prior to this one and here are the links to the previous tests:End testing time: 1:31 PM
