P_1x5R_141

P_1x5R_141_A

Production testing

Date:3/23/2007

Operator: Cameron McKinney

start testing time:10:37 AM

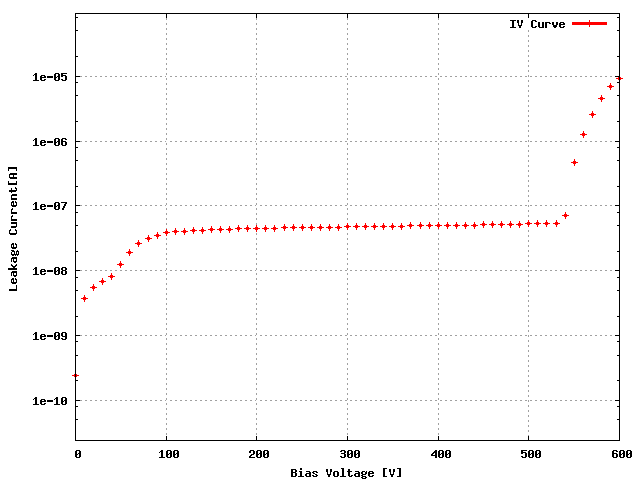

Sensor: S_1x5R_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W36_XD4K3LT 45B

ROC1 W36_XD4K3LT 45A

ROC2 W36_XD4K3LT 44C

ROC3 W36_XD4K3LT 44B

ROC4 W36_XD4K3LT 44A

ROC	ROC wafer	Label
ROC0	W36_XD4K3LT	45B
ROC1	W36_XD4K3LT	45A
ROC2	W36_XD4K3LT	44C
ROC3	W36_XD4K3LT	44B
ROC4	W36_XD4K3LT	44A

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data 124 126 134 140 132

Vana, VanaData 134 127 137 138 132

CalDelData and plots 83 96 87 84 84

VthrCompData and plots 77 76 70 79 68

TestDdata ,TestD Plots 0 1 1 0 1

LightData ,Light Plots 0 1 1 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	120	115	125	100	110
Vsf	140	135	135	140	135
VoffsetOp	90	70	65	85	65
VIbias_PH	100	105	100	105	105

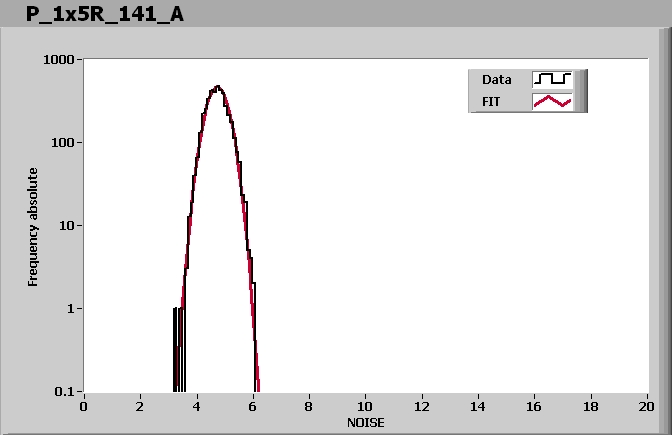

ROC0 NOISE			MEAN = 4.724480 SIGMA = 0.358133
ROC1 NOISE			MEAN = 5.391641 SIGMA = 0.424815
ROC2 NOISE			MEAN = 4.968120 SIGMA = 0.394317
ROC3 NOISE			MEAN = 4.793936 SIGMA = 0.370846

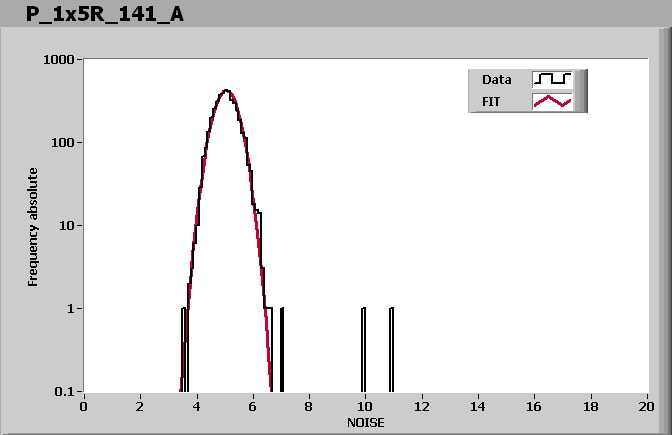

ROC4 NOISE			MEAN = 5.038958 SIGMA = 0.393732

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:55 AM

Ibias_DAC, Ibias_DAC Data	124	126	134	140	132
Vana, VanaData	134	127	137	138	132
CalDelData and plots	83	96	87	84	84
VthrCompData and plots	77	76	70	79	68
TestDdata ,TestD Plots	0	1	1	0	1
LightData ,Light Plots	0	1	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
