Sensor: S_1x5R_13, Data for leakage current measurement , and plot on overall it is a

ROC	ROC wafer	Label
ROC0	W36_XD4K3LT	37A
ROC1	W36_XD4K3LT	36C
ROC2	W36_XD4K3LT	36B
ROC3	W36_XD4K3LT	36A
ROC4	W36_XD4K3LT	35D

Depletion Voltage is -96 and suggested operational voltage is -136

Ibias_DAC, Ibias_DAC Data	146	138	126	130	290
Vana, VanaData	149	125	131	127	127
CalDelData and plots	85	78	80	0	0
VthrCompData and plots	85	76	74	0	0
TestDdata ,TestD Plots	2737	2970	2850	0	0
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	BAD	BAD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 5.915362 SIGMA = 0.593012

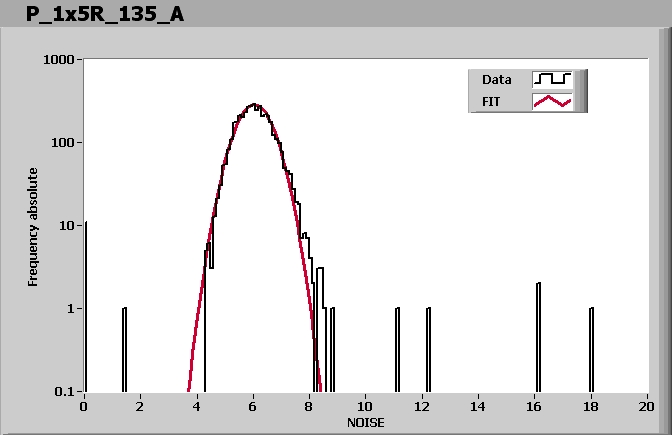

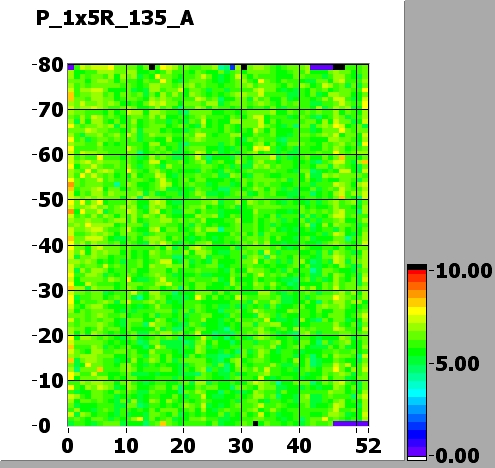

ROC1 NOISE			MEAN = 6.042903 SIGMA = 0.590517

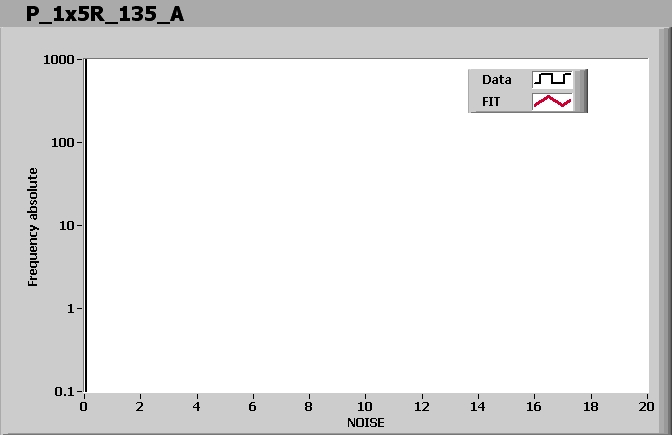

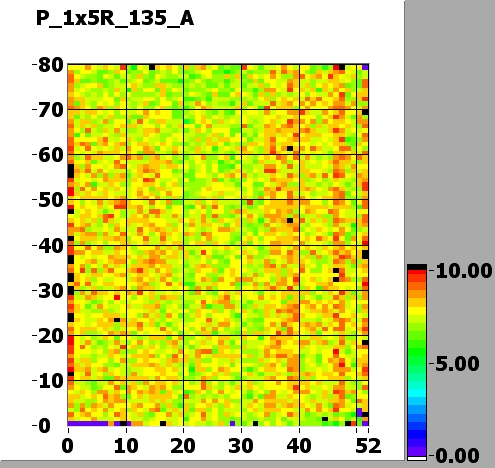

ROC2 NOISE			MEAN = 7.695931 SIGMA = 0.666419

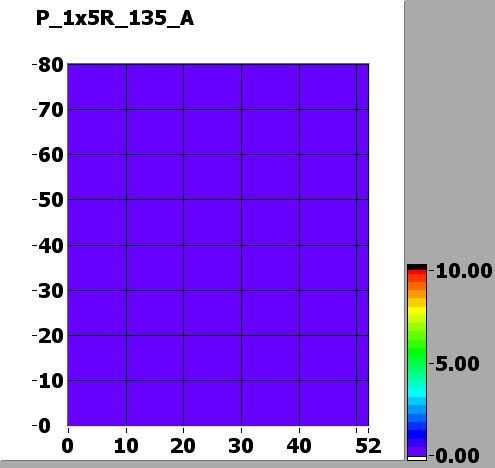

ROC3 NOISE			MEAN = NaN SIGMA = NaN
ROC4 NOISE			MEAN = NaN SIGMA = NaN

Comment (if any):

End testing time: 2:11 PM
