P_1x5R_131_A
Parts committed by Bolla Gino on date 11/13/2006
| ROC | ROC wafer | Label |
|---|
| ROC0 | W19_XN4K38T | 48D |
| ROC1 | W19_XN4K38T | 48B |
| ROC2 | W19_XN4K38T | 48A |
| ROC3 | W19_XN4K38T | 47A |
| ROC4 | W19_XN4K38T | 46C |
Inspected by Arndt Kirk on date 11/14/2006
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for testing on 11/14/2006 by Arndt Kirk
PLAQUETTE TESTED on 2006-11-14 by Isaac Childres
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 128 | 139 | 138 | 146 | 138 | |
| Vana | 123 | 129 | 140 | 137 | 138 | |
| Cal_Del | 96 | 96 | 91 | 78 | 82 | |
| Vthrs_Comp | 66 | 67 | 72 | 74 | 88 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | |
PLAQUETTE READY FOR SHIPPING

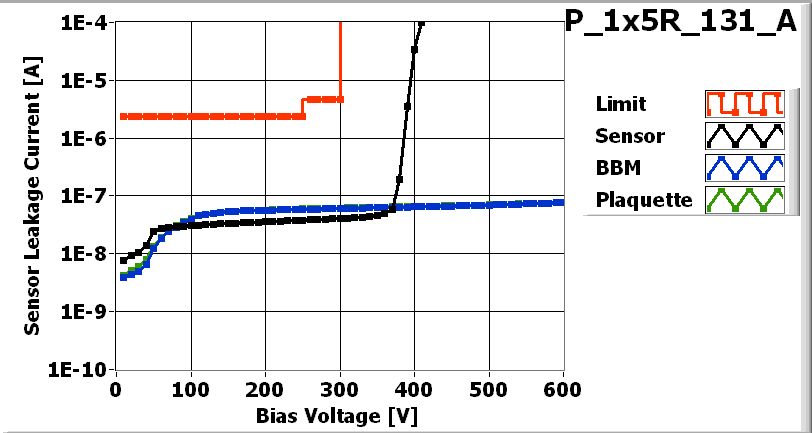

![[IMAGE] of](P_1x5R_131_A_IV.jpg)
![[IMAGE] of](P_1x5R_131_A_LASER.jpg)

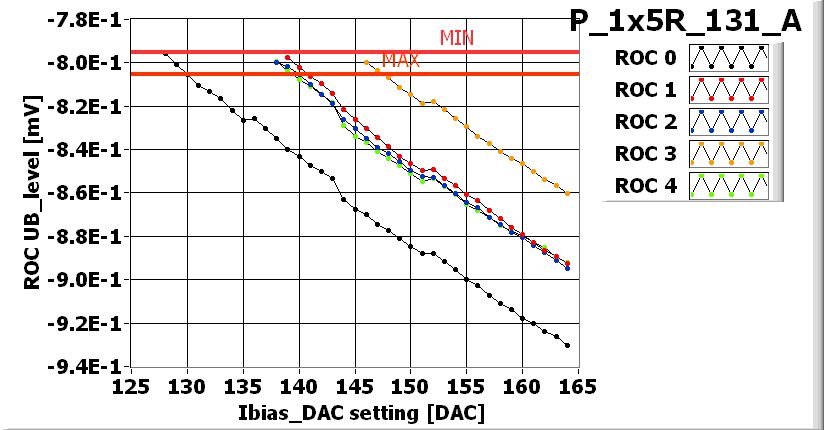

![[IMAGE] of](P_1x5R_131_A_Ibias-dac.jpg)

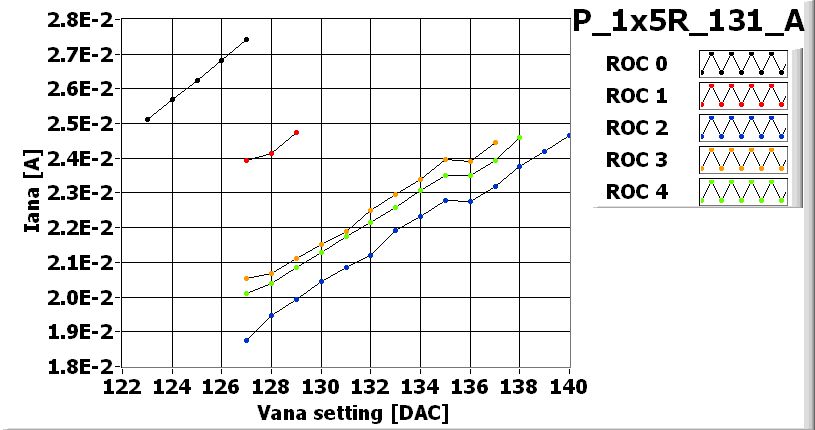

![[IMAGE] of](P_1x5R_131_A_Vana.jpg)
