![[IMAGE] of](P_1x5R_125_C_IV.jpg)

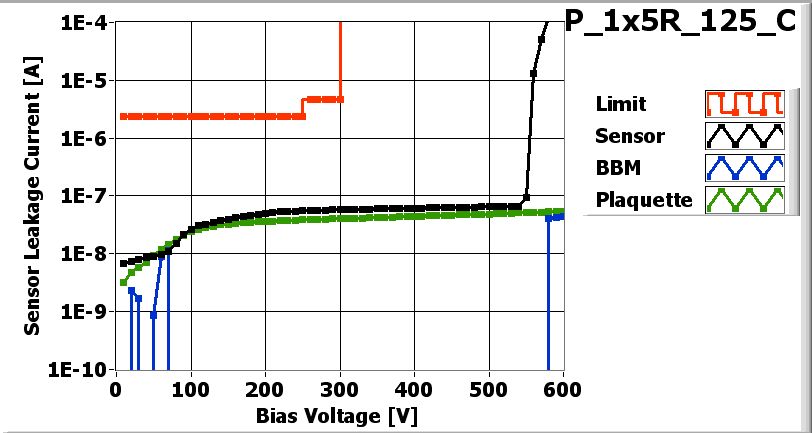

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_125_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_125-1x5 |
| VHDI | 1x5R_289 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 48B |
| ROC1 | KMNG2DT | 38C |
| ROC2 | KMNG2DT | 68D |
| ROC3 | KMNG2DT | 29C |
| ROC4 | KMNG2DT | 49C |
Inspected by Lockwood Gale on date 6/19/2007
| LR_dev | 0.041 |
| LL_dev | 0.029 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/19/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/19/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/19/2007 by Ozhan Koybasi
P_1x5R_125_Con 6/20/2007 11:21 AM
P_1x5R_125_Con 6/20/2007 11:21 AM
PLAQUETTE TESTED on 2007-06-20 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 172 | 164 | 154 | 144 | 168 | |
| Vana | 158 | 159 | 140 | 123 | 128 | |
| Cal_Del | 62 | 64 | 87 | 79 | 73 | |
| Vthrs_Comp | 91 | 93 | 76 | 77 | 83 | |
| Unbumped | 9 | 0 | 761 | 0 | 15 | |
| Dead | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 9 | 0 | 762 | 0 | 15 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

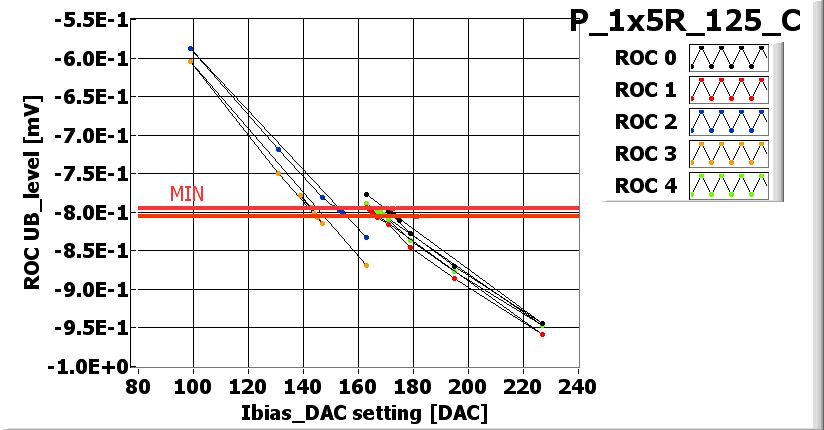

![[IMAGE] of](P_1x5R_125_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

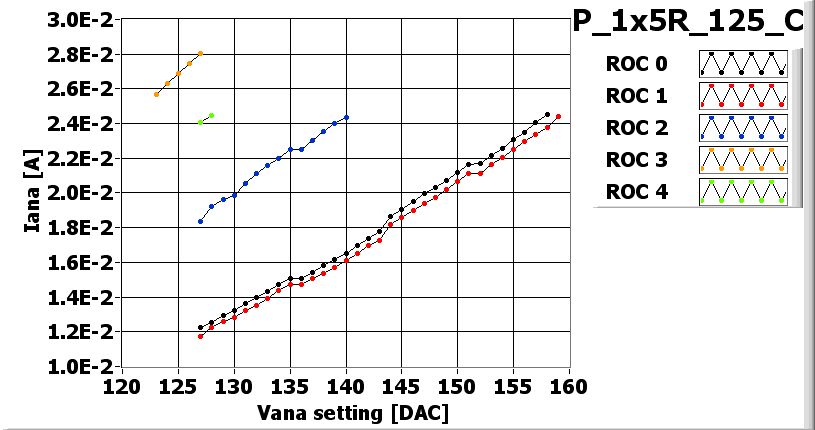

![[IMAGE] of](P_1x5R_125_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_125_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_125_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_125_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_125_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 100 | 85 | 125 | 115 |
| Vsf | 160 | 150 | 145 | 140 | 140 |
| VoffsetOp | 100 | 100 | 65 | 65 | 115 |
| VIbias_PH | 105 | 100 | 105 | 100 | 100 |

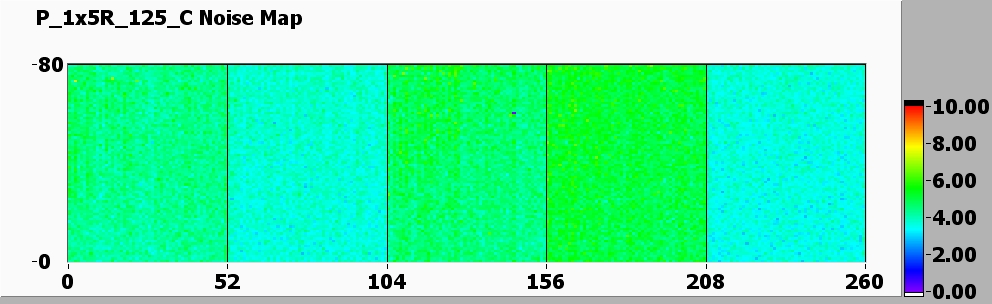

Noise MAP at VMAX
![[IMAGE] of](P_1x5R_125_C-580-noise.jpg)

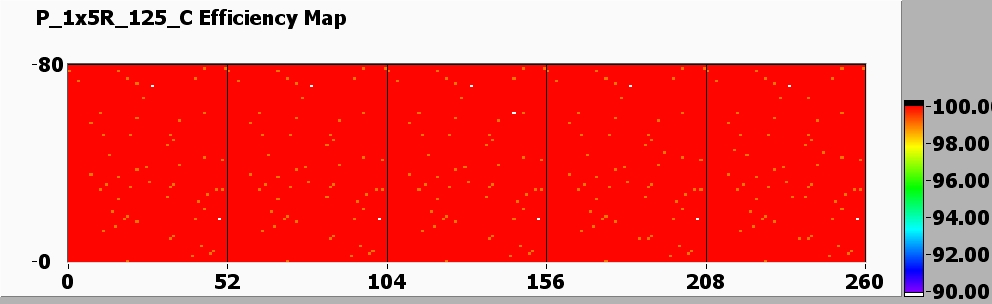

Efficiency MAP
![[IMAGE] of](P_1x5R_125_C-580-efficiency.jpg)

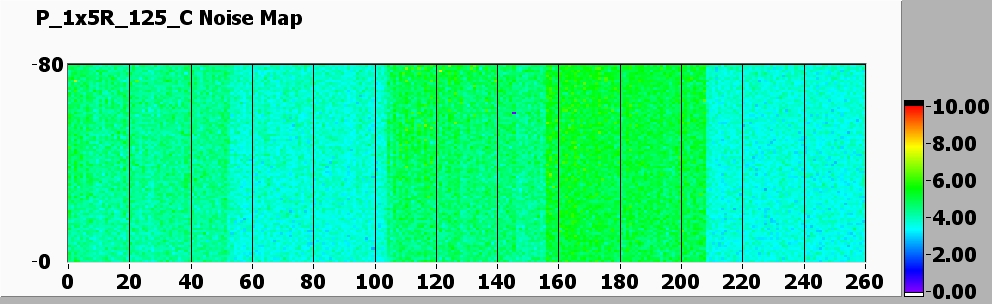

Noise MAP at -200 V
![[IMAGE] of](P_1x5R_125_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_125_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
