![[IMAGE] of](P_1x5R_123_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_123_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 11/16/2007
| Part | ID |
|---|---|
| BBM | BBM_123-1x5 |
| VHDI | 1x5R_324 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W47_DXLQF5T | 16A |
| ROC1 | W47_DXLQF5T | 15D |
| ROC2 | W47_DXLQF5T | 15B |
| ROC3 | W47_DXLQF5T | 15A |
| ROC4 | W47_DXLQF5T | 14D |
Inspected by Lockwood Gale on date 11/27/2007
| LR_dev | 0.055 |
| LL_dev | 0.036 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/28/2007 by Ozhan Koybasi
P_1x5R_123_Aon 11/28/2007 5:09 PM
P_1x5R_123_Aon 11/28/2007 5:09 PM
PLAQUETTE TESTED on 2007-11-28 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 150 | 156 | 154 | 144 | 176 | |
| Vana | 146 | 141 | 160 | 142 | 137 | |
| Cal_Del | 76 | 85 | 95 | 94 | 83 | |
| Vthrs_Comp | 87 | 81 | 90 | 86 | 84 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

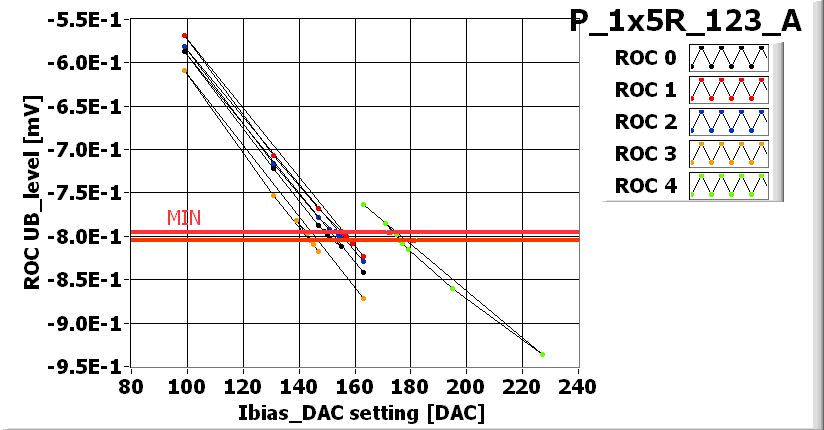

![[IMAGE] of](P_1x5R_123_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

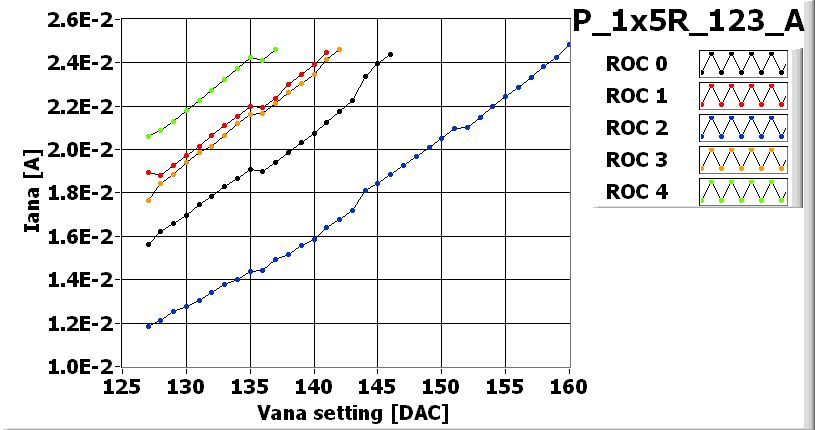

![[IMAGE] of](P_1x5R_123_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_123_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_123_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_123_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_123_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 90 | 95 | 115 | 95 |
| Vsf | 140 | 140 | 160 | 140 | 145 |
| VoffsetOp | 100 | 105 | 125 | 105 | 110 |
| VIbias_PH | 95 | 100 | 105 | 95 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5R_123_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_123_A-580-efficiency.jpg)

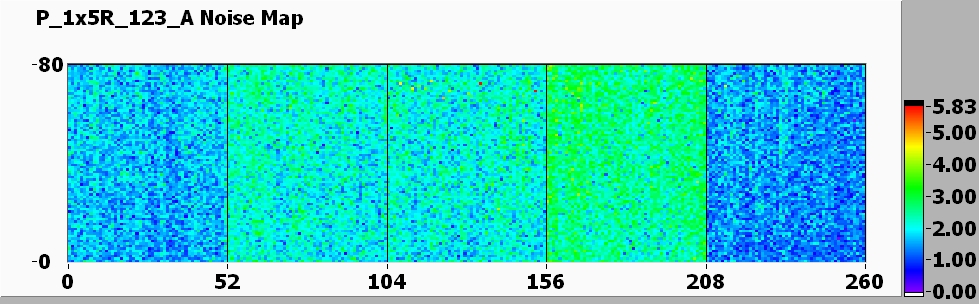

Noise MAP at -200 V
![[IMAGE] of](P_1x5R_123_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_123_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
