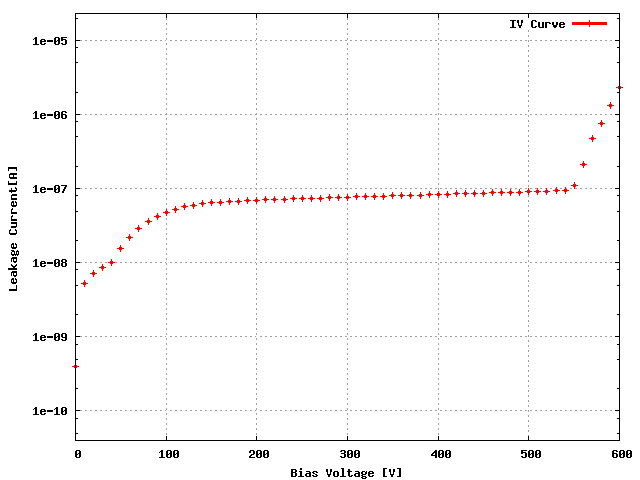

Sensor: S_1x5R_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 55A |
| ROC1 | W21_XA4KFIT | 54C |
| ROC2 | W21_XA4KFIT | 53D |
| ROC3 | W21_XA4KFIT | 04C |
| ROC4 | W21_XA4KFIT | 53C |
| Ibias_DAC, Ibias_DAC Data | 144 | 123 | 130 | 136 | 141 |
| Vana, VanaData | 134 | 127 | 137 | 122 | 135 |
| CalDelData and plots | 79 | 79 | 77 | 83 | 73 |
| VthrCompData and plots | 72 | 72 | 77 | 73 | 85 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 1 | 1 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): All good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:53 PM
