![[IMAGE] of](P_1x5R_071_A_IV.jpg)
| IV_XML-File |

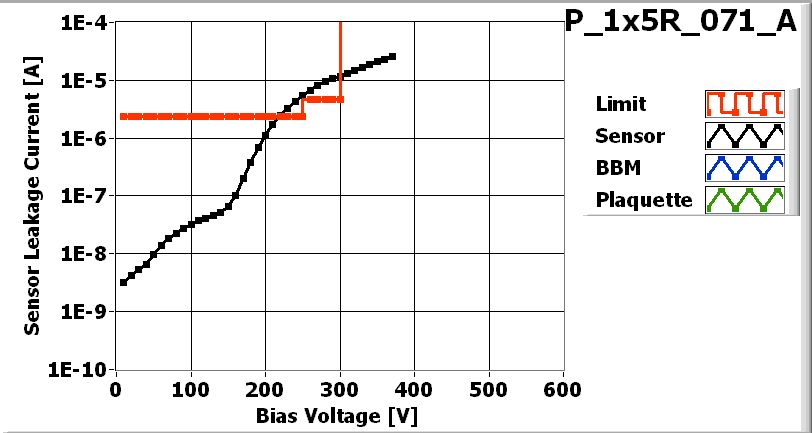

| Maximum Voltage 370 V |
![[IMAGE] of](P_1x5R_071_A_LASER.jpg)
| LASER_XML-File |

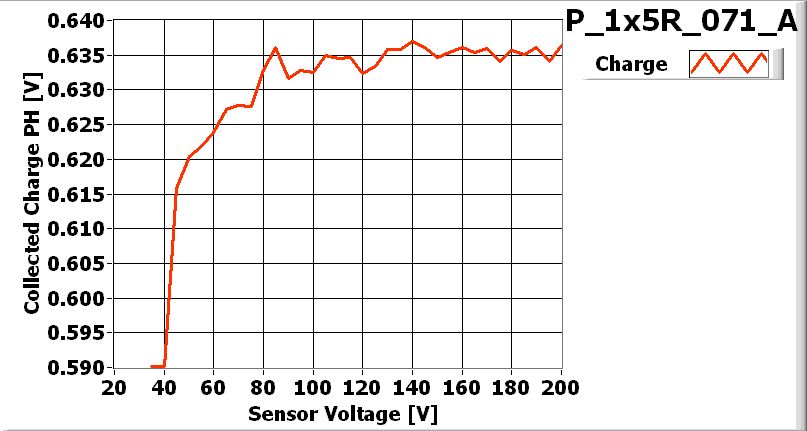

| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_071-1x5 |
| VHDI | 1x5R_202 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 58A |
| ROC1 | X74JP0T | 57C |
| ROC2 | X74JP0T | 57B |
| ROC3 | X74JP0T | 57A |
| ROC4 | X74JP0T | 56C |
Inspected by Arndt Kirk on date 2006-06-28
| LR_dev | 0.033 |
| LL_dev | 0.029 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-28 by Arndt Kirk
PLAQUETTE TESTED on 2006-6-29 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 163 | 170 | 165 | 156 | 155 | |
| Vana | 117 | 125 | 132 | 126 | 113 | |
| Cal_Del | 94 | 95 | 88 | 77 | 104 | |
| Vthrs_Comp | 80 | 72 | 72 | 89 | 67 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_071_A_Ibias-dac.jpg) |

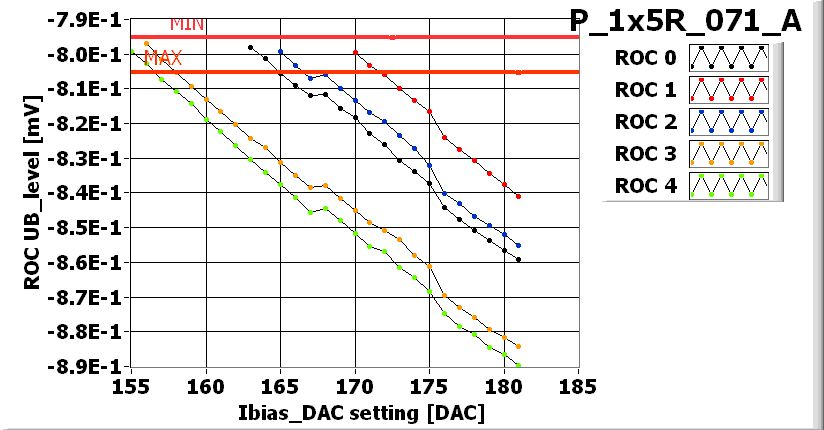

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_071_A_Vana.jpg) |

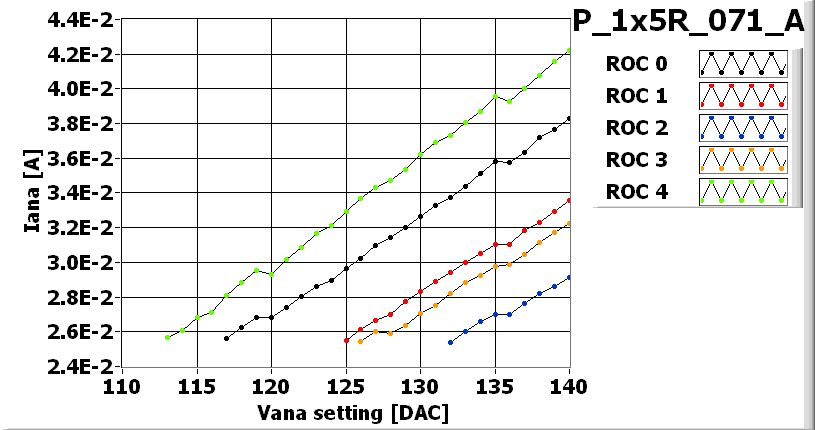

VANA_XML-File |
![[IMAGE] of](P_1x5R_071_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_071_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_071_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_071_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-22
