P_1x5R_069

P_1x5R_069_A-1

Production testing

Date:12/7/2007

Operator: Ozhan Koybasi

start testing time:3:23 PM

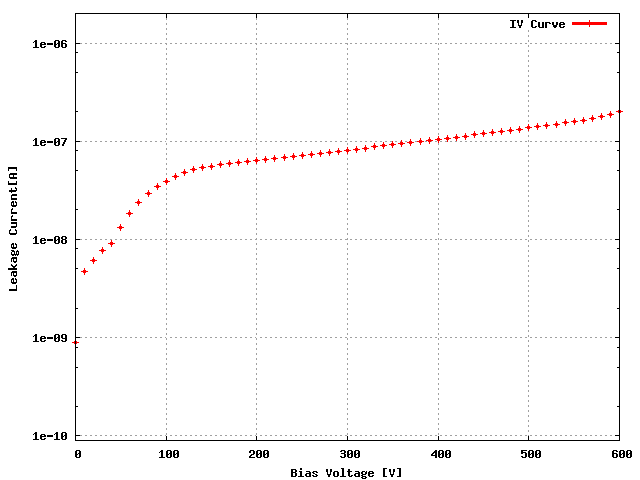

Sensor: S_1x5R_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W52_D0LQC8T 18A

ROC1 W52_D0LQC8T 17D

ROC2 W52_D0LQC8T 17A

ROC3 W52_D0LQC8T 16C

ROC4 W52_D0LQC8T 03C

ROC	ROC wafer	Label
ROC0	W52_D0LQC8T	18A
ROC1	W52_D0LQC8T	17D
ROC2	W52_D0LQC8T	17A
ROC3	W52_D0LQC8T	16C
ROC4	W52_D0LQC8T	03C

Inspected by Lockwood Gale on date 11/30/2007

LR_dev 0.046

LL_dev 0.039

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 11/30/2007 by Lockwood Gale

PLAQUETTE encapsulated on 12/4/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 12/4/2007 by Ozhan Koybasi

P_1x5R_069_Aon 12/5/2007 1:33 PM

PLAQUETTE TESTED on 2007-12-05 by Ozhan Koybasi

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4
Ibias_DAC	156	160	148	140	156
Vana	149	154	156	138	147
Cal_Del	91	80	90	92	79
Vthrs_Comp	84	90	91	88	88
Unbumped	0	0	0	0	0
Dead	1	5	110	0	0
Noisy	0	0	0	0	0
Undecoded	0	0	0	0	0
Total BAD	1	5	110	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	90	100	95	100	100
Vsf	150	150	155	140	145
VoffsetOp	105	125	130	95	110
VIbias_PH	100	100	100	100	110

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 156 160 148 140 156

Vana, VanaData 150 154 155 138 147

CalDelData and plots 91 80 90 92 79

VthrCompData and plots 85 90 90 88 88

TestDdata ,TestD Plots 49 6 113 4 1

LightData ,Light Plots 0 0 0 0 0

Pass/Fail TestD BAD GOOD BAD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

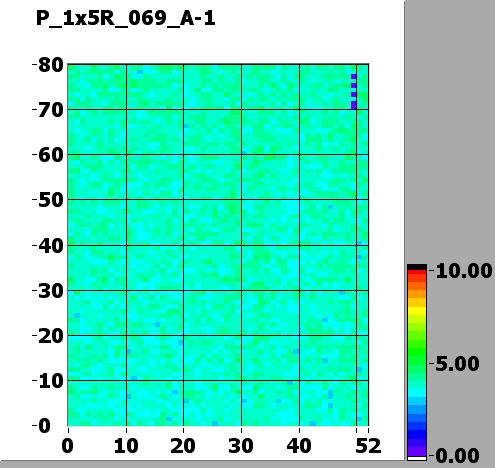

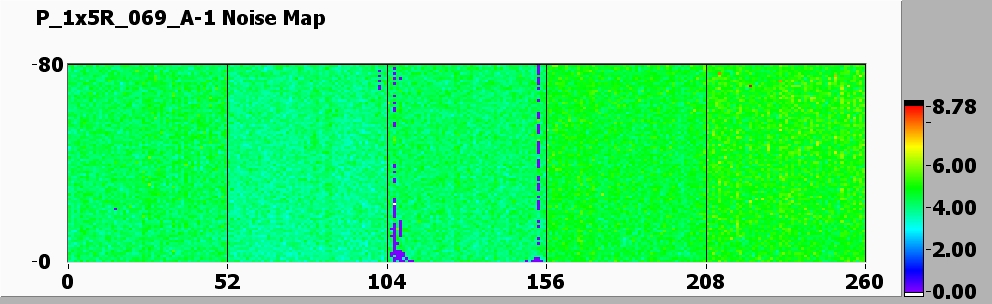

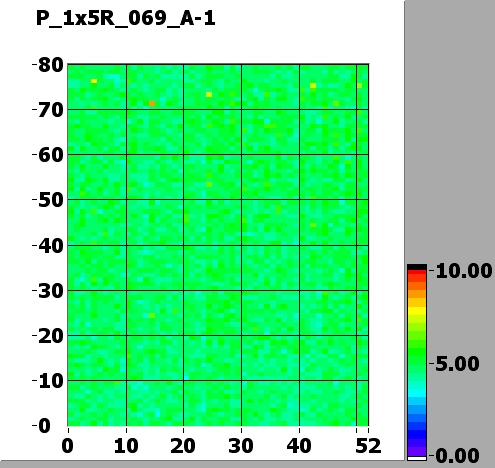

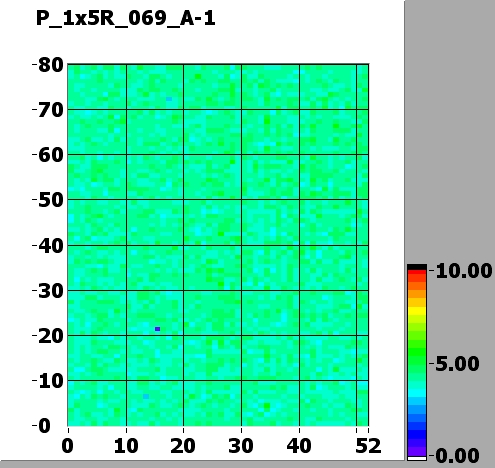

Noise MAP at VMAX

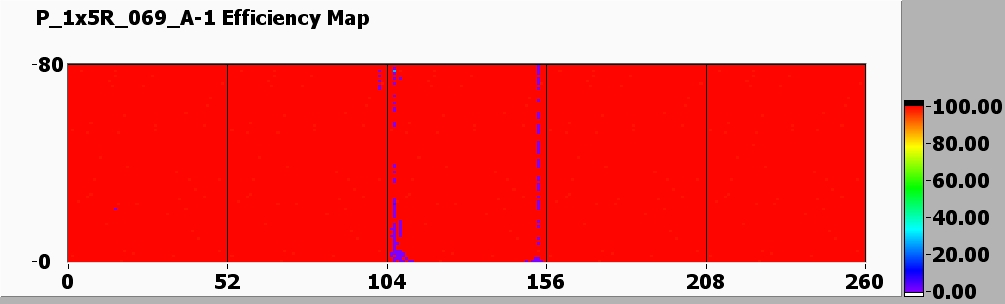

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	100	95	100	100
Vsf	150	155	155	140	145
VoffsetOp	105	125	130	95	110
VIbias_PH	100	100	95	100	110

ROC0 NOISE			MEAN = 4.122836 SIGMA = 0.334876
ROC1 NOISE			MEAN = 3.794806 SIGMA = 0.301648
ROC2 NOISE			MEAN = 4.039549 SIGMA = 0.298777
ROC3 NOISE			MEAN = 4.457401 SIGMA = 0.340444

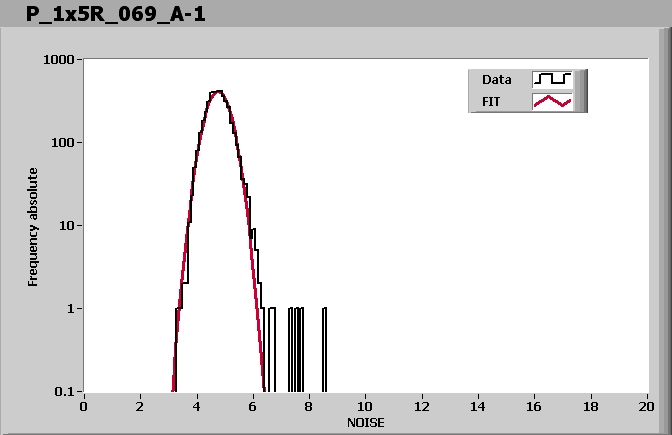

ROC4 NOISE			MEAN = 4.753098 SIGMA = 0.397822

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_1x5R_069_A.html,

End testing time: 3:49 PM

Ibias_DAC, Ibias_DAC Data	156	160	148	140	156
Vana, VanaData	150	154	155	138	147
CalDelData and plots	91	80	90	92	79
VthrCompData and plots	85	90	90	88	88
TestDdata ,TestD Plots	49	6	113	4	1
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	BAD	GOOD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
