P_1x5R_066_C

Parts committed by Bolla Gino on date 4/16/2007

PartID
BBMBBM_066-1x5
VHDI1x5R_267

ROCROC waferLabel
ROC0X94KFJT13D
ROC1X94KFJT44C
ROC2X94KFJT44D
ROC3X94KFJT34A
ROC4X94KFJT44A

Inspected by Lockwood Gale on date 4/20/2007
LR_dev0.062
LL_dev0.065

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood GaleAssembled at HALF-PRESSURE. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 4/20/2007 by Lockwood Gale

PLAQUETTE encapsulated on 4/20/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 4/20/2007 by Ozhan Koybasi

P_1x5R_066_Con 4/23/2007 1:05 PM

P_1x5R_066_C-1on 4/23/2007 1:10 PM

P_1x5R_066_C-2on 4/23/2007 1:20 PM

P_1x5R_066_C-2on 4/23/2007 1:20 PM

P_1x5R_066_C-3on 4/23/2007 1:50 PM

PLAQUETTE TESTED on 2007-04-23 by Joseph Clampitt

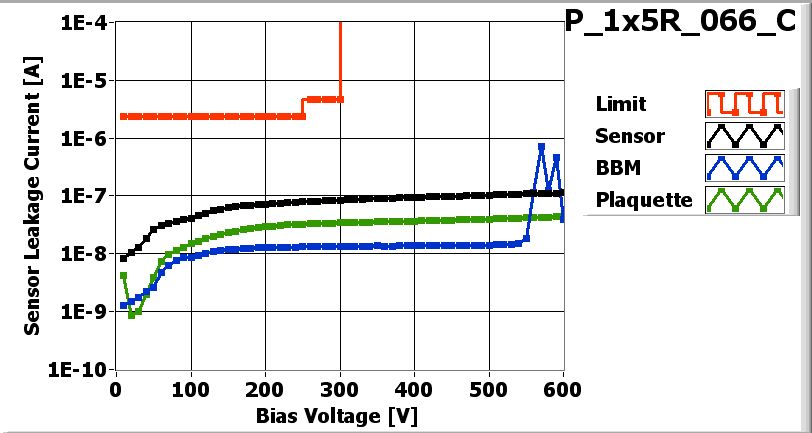

[IMAGE] of
IV_XML-File
Maximum Voltage 600 V
[IMAGE] of
LASER_XML-File
Depletion Voltage 48 V
Operational Voltage 88 V

ROCROC0ROC1ROC2ROC3ROC4
Ibias_DAC134140124134128
Vana127143125137137
Cal_Del7987778587
Vthrs_Comp7177747276
Unbumped10002
Dead50000
Noisy00000
Undecoded00000
Total BAD60002

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

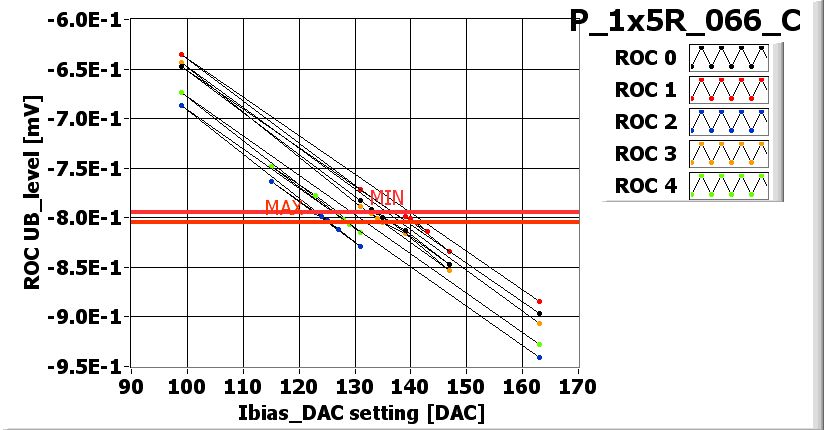

[IMAGE] of I_BIAS_DAC_XML-File
[IMAGE] of VANA_XML-File

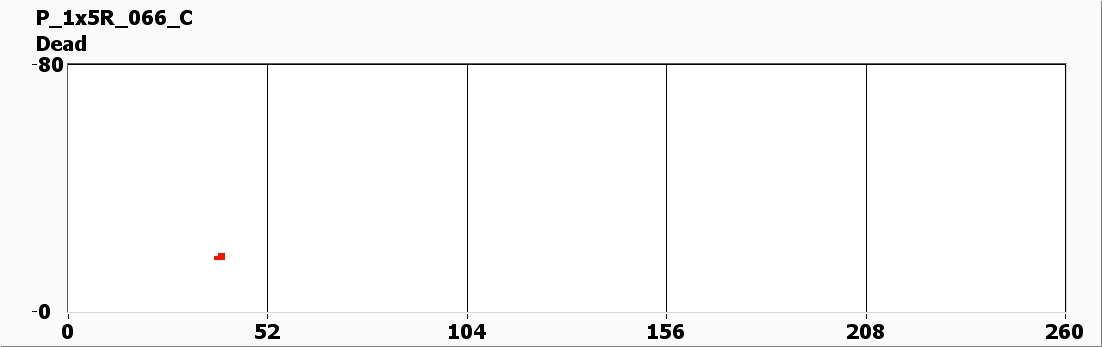

[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe11585145115115
Vsf135140140140145
VoffsetOp7585606080
VIbias_PH1001059510595

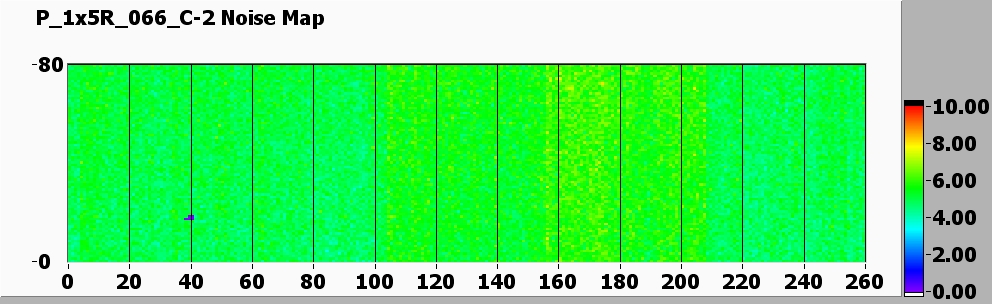

Noise MAP

[IMAGE] of

Efficiency MAP

[IMAGE] of

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-04-25

Plaquette assigned to panel P4L_050
