P_1x5R_049

P_1x5R_049_A

Production testing

Date:6/21/2007

Operator: Emily Grace

start testing time:1:26 PM

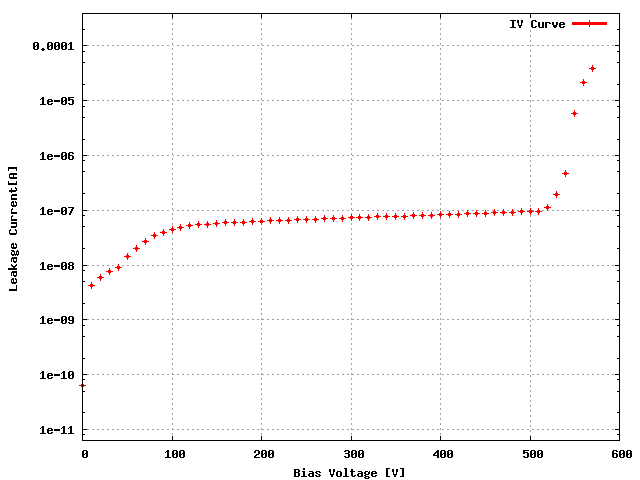

Sensor: S_1x5R_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W48_DVLQDVT 57A

ROC1 W48_DVLQDVT 56D

ROC2 W48_DVLQDVT 56B

ROC3 W48_DVLQDVT 55C

ROC4 W48_DVLQDVT 55B

ROC	ROC wafer	Label
ROC0	W48_DVLQDVT	57A
ROC1	W48_DVLQDVT	56D
ROC2	W48_DVLQDVT	56B
ROC3	W48_DVLQDVT	55C
ROC4	W48_DVLQDVT	55B

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 148 176 156 158 146

Vana, VanaData 160 154 145 144 146

CalDelData and plots 86 94 84 89 86

VthrCompData and plots 92 86 86 92 89

TestDdata ,TestD Plots 1 88 283 46 9

LightData ,Light Plots 0 2 0 0 1

Pass/Fail TestD GOOD BAD BAD BAD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

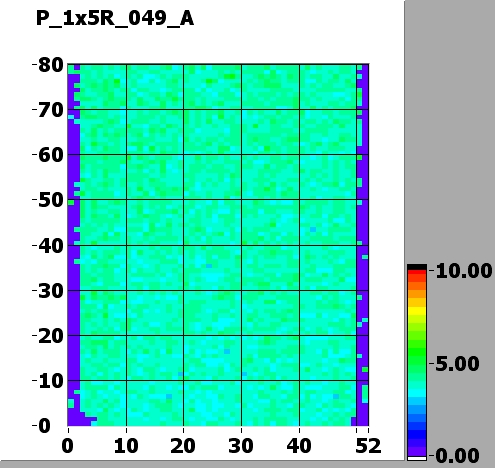

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	95	90	100	100
Vsf	160	150	145	145	145
VoffsetOp	105	130	110	95	105
VIbias_PH	100	95	100	105	100

ROC0 NOISE			MEAN = 4.047577 SIGMA = 0.310827

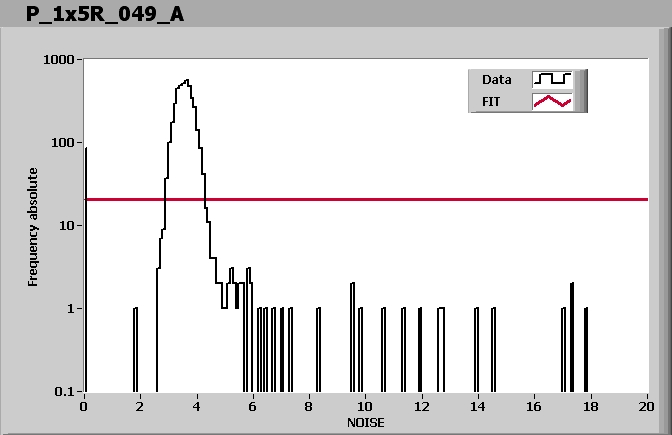

ROC1 NOISE			MEAN = -21310.553417 SIGMA = 305958.660722
ROC2 NOISE			MEAN = 20437.609299 SIGMA = 223189.857668

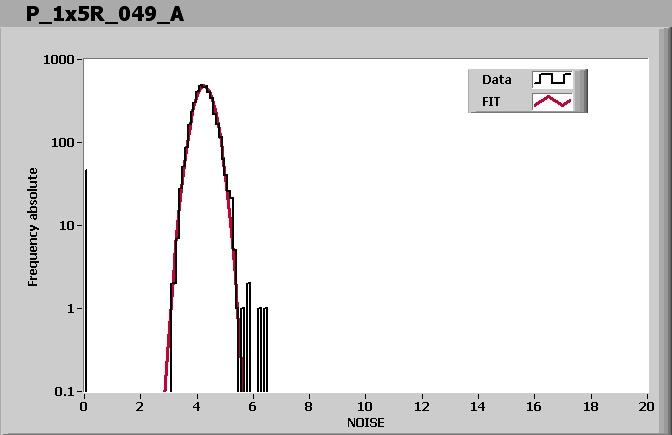

ROC3 NOISE			MEAN = 4.255114 SIGMA = 0.337837

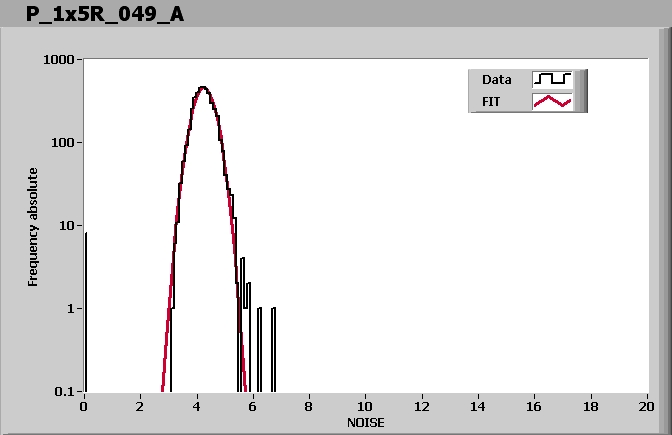

ROC4 NOISE			MEAN = 4.250555 SIGMA = 0.356755

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:52 PM

Ibias_DAC, Ibias_DAC Data	148	176	156	158	146
Vana, VanaData	160	154	145	144	146
CalDelData and plots	86	94	84	89	86
VthrCompData and plots	92	86	86	92	89
TestDdata ,TestD Plots	1	88	283	46	9
LightData ,Light Plots	0	2	0	0	1
Pass/Fail TestD	GOOD	BAD	BAD	BAD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
