P_1x5R_043_A
Parts committed by Bolla Gino on date 10/30/2006
| ROC | ROC wafer | Label |
|---|
| ROC0 | W18_XJ4KT3FT | 53D |
| ROC1 | W18_XJ4KT3FT | 53C |
| ROC2 | W18_XJ4KT3FT | 53B |
| ROC3 | W18_XJ4KT3FT | 53A |
| ROC4 | W18_XJ4KT3FT | 52D |
Inspected by Arndt Kirk on date 11/2/2006
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 11/2/2006 by Arndt Kirk
PLAQUETTE TESTED on 2006-11-02 by Cameron McKinney
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |

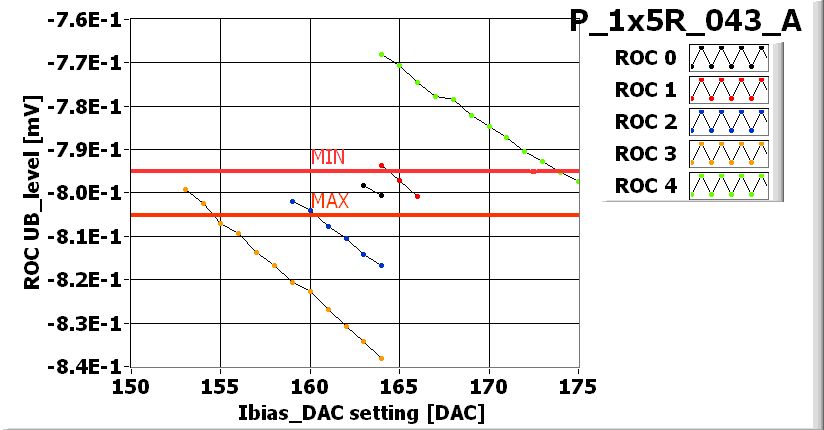

| Ibias_DAC | 163 | 166 | 159 | 153 | 175 | |

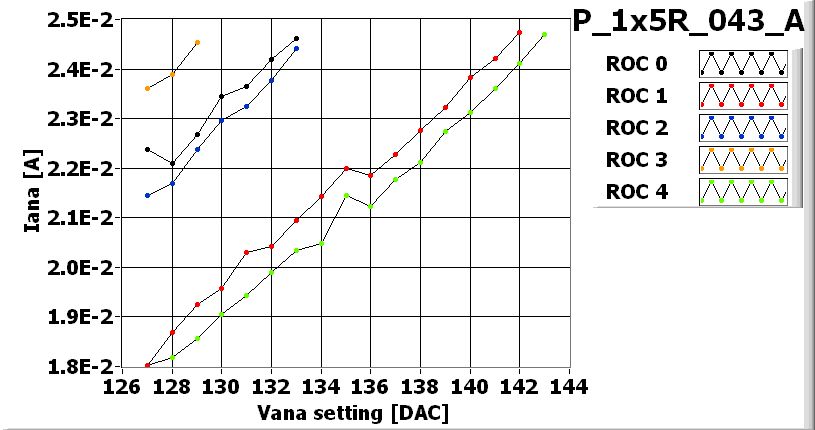

| Vana | 133 | 142 | 133 | 129 | 143 | |
| Cal_Del | 84 | 76 | 71 | 82 | 81 | |
| Vthrs_Comp | 73 | 90 | 72 | 80 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |

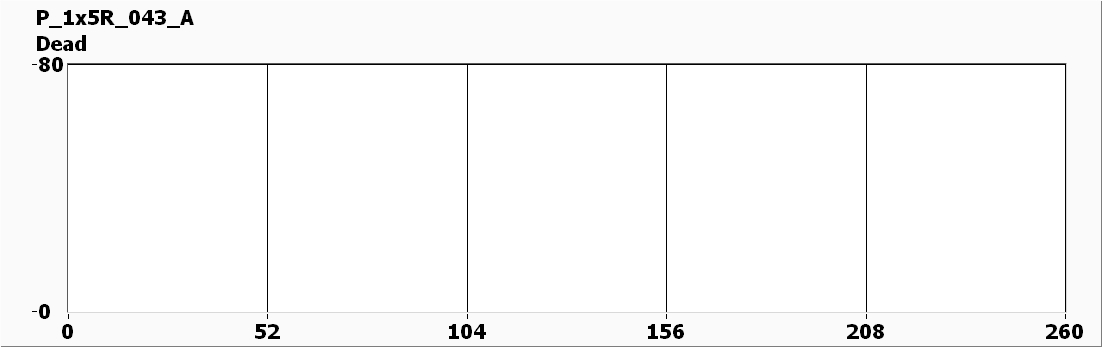

| Dead | 0 | 0 | 0 | 0 | 0 | |

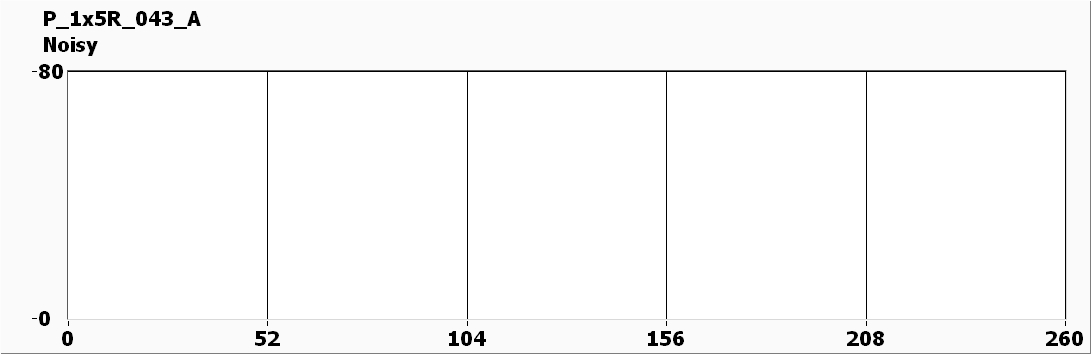

| Noisy | 0 | 0 | 0 | 0 | 0 | |

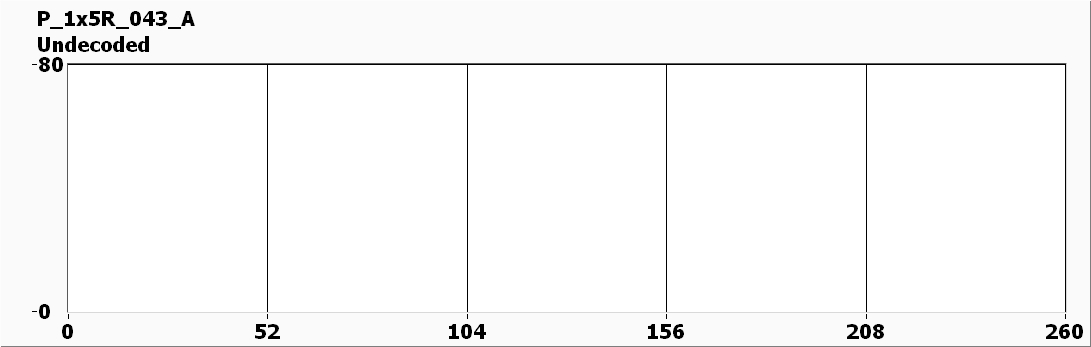

| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | |
PLAQUETTE READY FOR SHIPPING
![[IMAGE] of](P_1x5R_043_A_IV.jpg)
![[IMAGE] of](P_1x5R_043_A_LASER.jpg)
![[IMAGE] of](P_1x5R_043_A_Ibias-dac.jpg)
![[IMAGE] of](P_1x5R_043_A_Vana.jpg)
![[IMAGE] of](P_1x5R_043_ADead-PixelAlivetest.jpg){kind=tracking}
![[IMAGE] of](P_1x5R_043_ANoisy-Pixel-Alive.jpg){kind=tracking}
![[IMAGE] of](P_1x5R_043_AUndecoded-PixelAlivetest.jpg){kind=tracking}
![[IMAGE] of](P_1x5R_043_Ano-bump-light.jpg)
