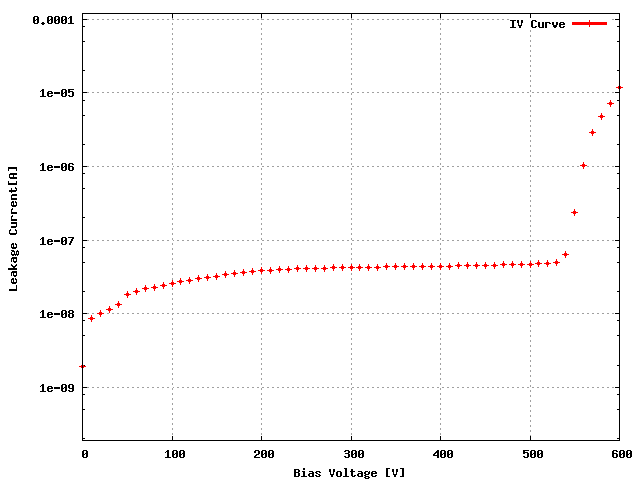

Sensor: S_1x5R_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 15B |
| ROC1 | XF4K3JT | 16A |
| ROC2 | XF4K3JT | 23D |
| ROC3 | XF4K3JT | 17A |
| ROC4 | XF4K3JT | 17B |
| Ibias_DAC, Ibias_DAC Data | 130 | 139 | 125 | 141 | 139 |
| Vana, VanaData | 127 | 135 | 108 | 133 | 134 |
| CalDelData and plots | 81 | 74 | 87 | 77 | 88 |
| VthrCompData and plots | 70 | 79 | 73 | 79 | 66 | Depletion Voltage is -10 and suggested operational voltage is -50
| TestDdata ,TestD Plots | 0 | 5 | 4 | 0 | 8 |
| LightData ,Light Plots | 0 | 21 | 169 | 0 | 8 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | BAD | GOOD | GOOD |
Comment (if any): laser scan stopped at -100V, so Vdep is wrong.
This Device have been tested 4Times prior to this one and here are the links to the previous tests:End testing time: 12:36 PM
