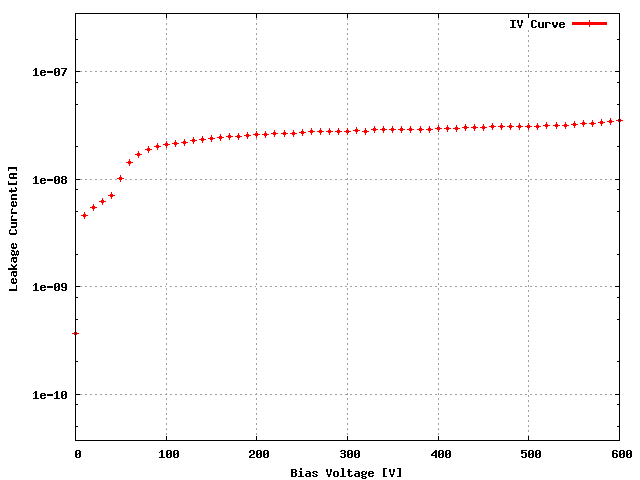

Sensor: S_1x5R_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 61B |
| ROC1 | XE4KFET | 75D |
| ROC2 | XE4KFET | 63B |
| ROC3 | XE4KFET | 66C |
| ROC4 | XE4KFET | 67D |
| Ibias_DAC, Ibias_DAC Data | 132 | 134 | 130 | 120 | 138 |
| Vana, VanaData | 109 | 127 | 120 | 123 | 131 |
| CalDelData and plots | 82 | 84 | 98 | 100 | 73 |
| VthrCompData and plots | 79 | 85 | 67 | 70 | 92 | Depletion Voltage is -54 and suggested operational voltage is -94
| TestDdata ,TestD Plots | 1 | 0 | 0 | 0 | 1 |
| LightData ,Light Plots | 1 | 0 | 0 | 0 | 1 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:53 PM
