P_1x5L_176

P_1x5L_176_C

Production testing

Date:5/14/2007

Operator: Gino Bolla

start testing time:12:33 PM

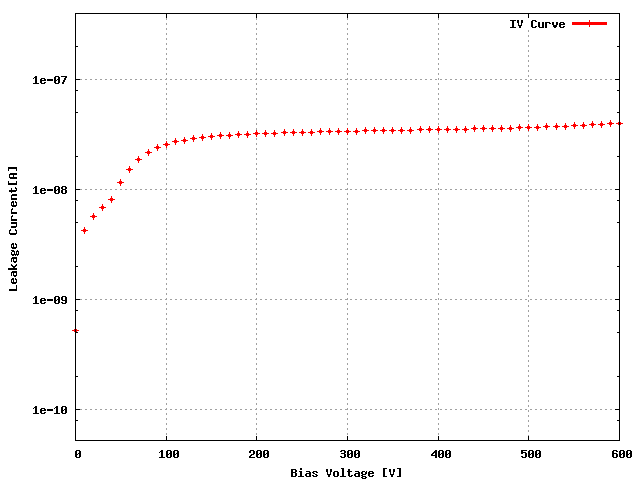

Sensor: S_1x5L_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KFNG13T 65A

ROC1 KFNG13T 05D

ROC2 KFNG13T 53C

ROC3 KFNG13T 43B

ROC4 KFNG13T 53D

ROC	ROC wafer	Label
ROC0	KFNG13T	65A
ROC1	KFNG13T	05D
ROC2	KFNG13T	53C
ROC3	KFNG13T	43B
ROC4	KFNG13T	53D

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 164 170 158 168 154

Vana, VanaData 141 139 141 145 127

CalDelData and plots 85 79 83 87 83

VthrCompData and plots 88 80 79 82 79

TestDdata ,TestD Plots 1 0 0 0 0

LightData ,Light Plots 1 3 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	100	120	95	135
Vsf	140	140	140	145	140
VoffsetOp	110	75	85	100	65
VIbias_PH	100	100	100	95	100

ROC0 NOISE			MEAN = 3.442491 SIGMA = 0.260304
ROC1 NOISE			MEAN = 4.126779 SIGMA = 0.329171
ROC2 NOISE			MEAN = 4.195602 SIGMA = 0.355948

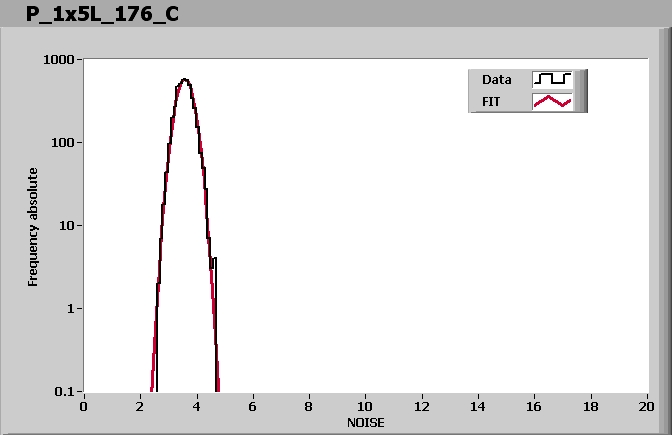

ROC3 NOISE			MEAN = 3.576056 SIGMA = 0.284440

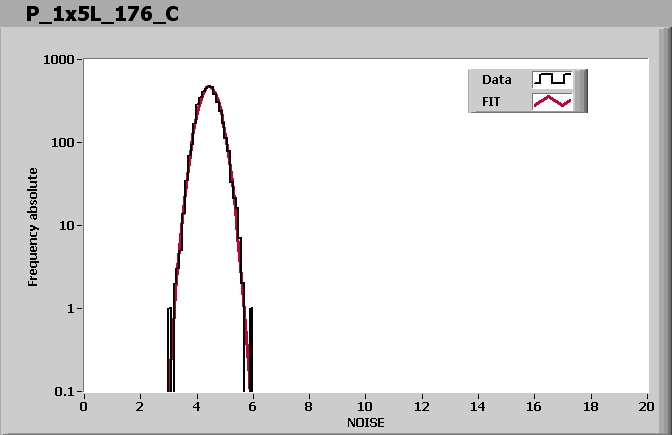

ROC4 NOISE			MEAN = 4.436493 SIGMA = 0.352022

Comment (if any): GOOD

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:07 PM

Ibias_DAC, Ibias_DAC Data	164	170	158	168	154
Vana, VanaData	141	139	141	145	127
CalDelData and plots	85	79	83	87	83
VthrCompData and plots	88	80	79	82	79
TestDdata ,TestD Plots	1	0	0	0	0
LightData ,Light Plots	1	3	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
