P_1x5L_163

P_1x5L_163_C

Production testing

Date:5/8/2007

Operator: mia tosi

start testing time:11:31 AM

Sensor: S_1x5L_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KNN0GDT 52C

ROC1 KNN0GDT 32D

ROC2 KNN0GDT 42C

ROC3 KNN0GDT 22B

ROC4 KNN0GDT 12C

ROC	ROC wafer	Label
ROC0	KNN0GDT	52C
ROC1	KNN0GDT	32D
ROC2	KNN0GDT	42C
ROC3	KNN0GDT	22B
ROC4	KNN0GDT	12C

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 144 146 134 140 148

Vana, VanaData 138 127 128 125 146

CalDelData and plots 84 78 81 68 77

VthrCompData and plots 73 78 81 81 82

TestDdata ,TestD Plots 8 1 1 0 0

LightData ,Light Plots 14 1 1 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	115	120	145	90
Vsf	140	140	140	140	145
VoffsetOp	95	80	60	70	80
VIbias_PH	105	100	110	100	100

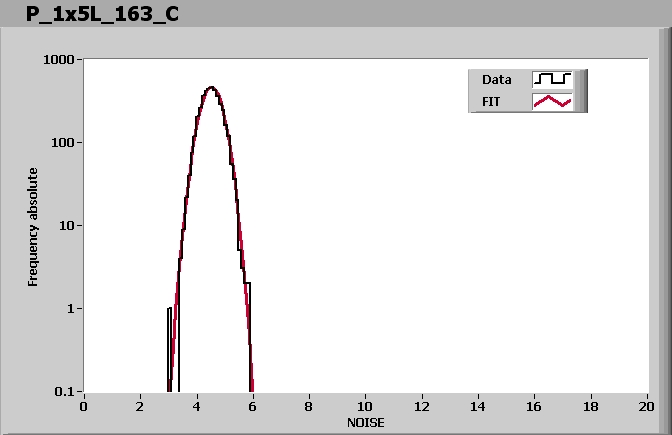

ROC0 NOISE			MEAN = 4.517507 SIGMA = 0.359999

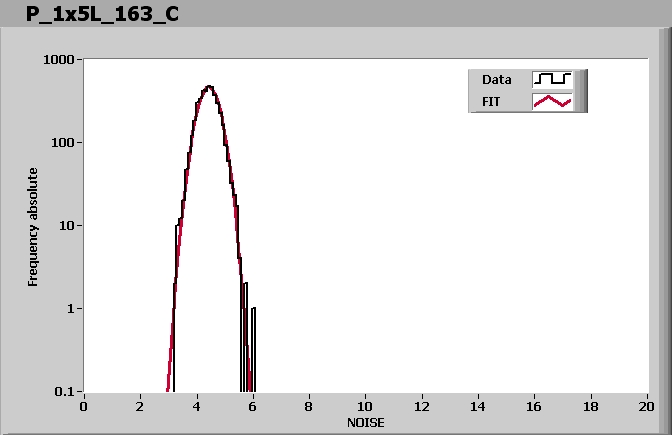

ROC1 NOISE			MEAN = 4.420899 SIGMA = 0.355457

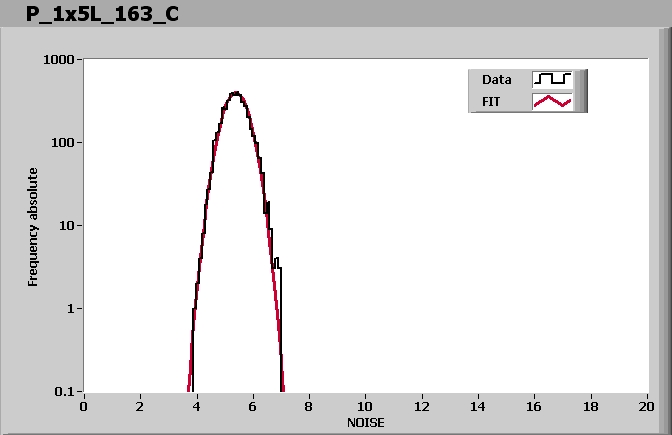

ROC2 NOISE			MEAN = 5.382767 SIGMA = 0.417562
ROC3 NOISE			MEAN = 4.995226 SIGMA = 0.387904
ROC4 NOISE			MEAN = 4.656668 SIGMA = 0.376502

Comment (if any): look @ ROC0 corner

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:53 AM

Ibias_DAC, Ibias_DAC Data	144	146	134	140	148
Vana, VanaData	138	127	128	125	146
CalDelData and plots	84	78	81	68	77
VthrCompData and plots	73	78	81	81	82
TestDdata ,TestD Plots	8	1	1	0	0
LightData ,Light Plots	14	1	1	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
