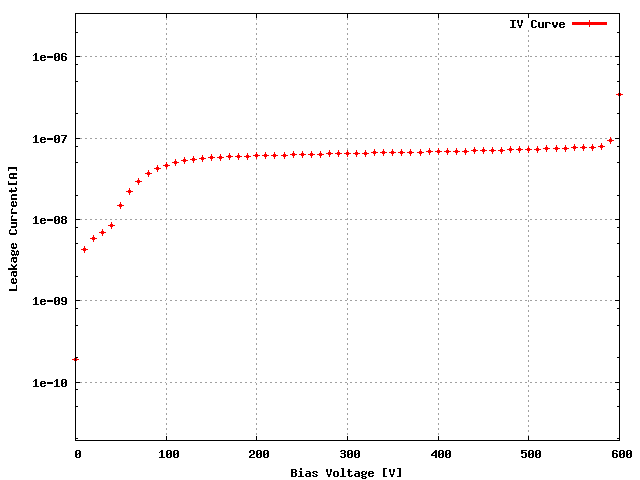

Sensor: S_1x5L_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W19_XN4K38T | 58D |
| ROC1 | W19_XN4K38T | 58A |
| ROC2 | W19_XN4K38T | 57D |
| ROC3 | W19_XN4K38T | 56B |
| ROC4 | W19_XN4K38T | 55C |
| Ibias_DAC, Ibias_DAC Data | 143 | 133 | 126 | 152 | 132 |
| Vana, VanaData | 144 | 144 | 134 | 139 | 123 |
| CalDelData and plots | 88 | 74 | 87 | 80 | 85 |
| VthrCompData and plots | 85 | 79 | 69 | 71 | 77 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 0 | 0 | 2 | 2 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): A few DEAD channels
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:39 PM
