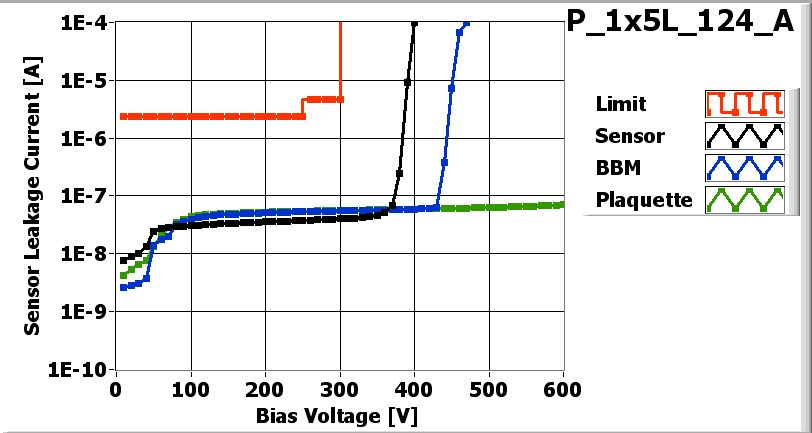

![[IMAGE] of](P_1x5L_124_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_124_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Arndt Kirk on date 2/27/2007
| Part | ID |
|---|---|
| BBM | BBM_124-1x5 |
| VHDI | 1x5L_249 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 63A |
| ROC1 | W35_XH4K3HT | 62D |
| ROC2 | W35_XH4K3HT | 62C |
| ROC3 | W35_XH4K3HT | 62B |
| ROC4 | W35_XH4K3HT | 62A |
Inspected by Arndt Kirk on date 3/1/2007
| LR_dev | 0.074 |
| LL_dev | 0.007 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 3/1/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/2/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 3/2/2007 by Arndt Kirk
P_1x5L_124_Aon 3/5/2007 10:57 AM
P_1x5L_124_A-1on 3/5/2007 12:25 PM
P_1x5L_124_A-1on 3/5/2007 12:25 PM
PLAQUETTE TESTED on 2007-03-05 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 128 | 118 | 132 | 132 | 142 | |
| Vana | 106 | 114 | 120 | 128 | 128 | |
| Cal_Del | 93 | 99 | 93 | 96 | 84 | |
| Vthrs_Comp | 66 | 71 | 74 | 61 | 71 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 2 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 2 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

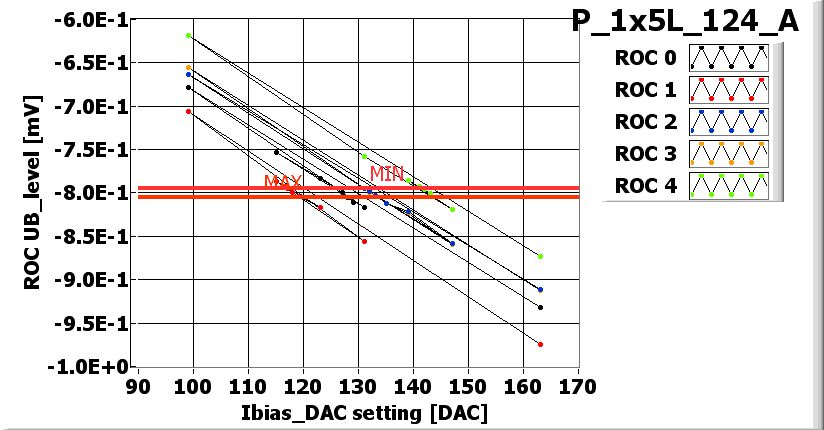

![[IMAGE] of](P_1x5L_124_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

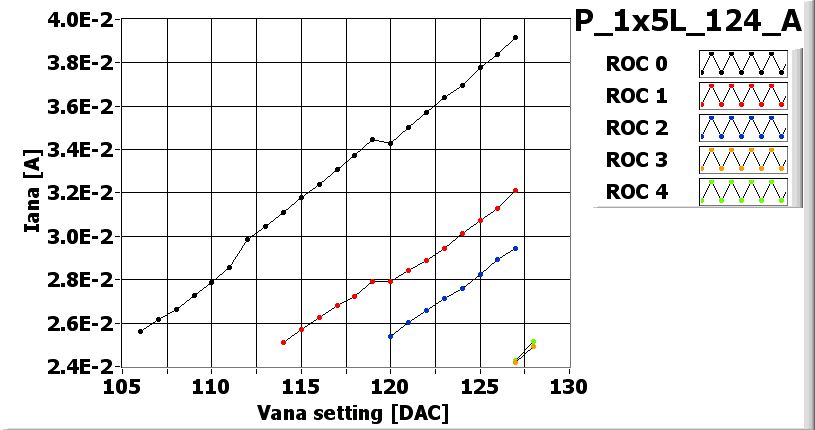

![[IMAGE] of](P_1x5L_124_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_124_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_124_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_124_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_124_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 140 | 135 | 145 | 100 | 120 |
| Vsf | 125 | 135 | 135 | 140 | 140 |
| VoffsetOp | 60 | 75 | 75 | 70 | 80 |
| VIbias_PH | 105 | 100 | 105 | 95 | 105 |

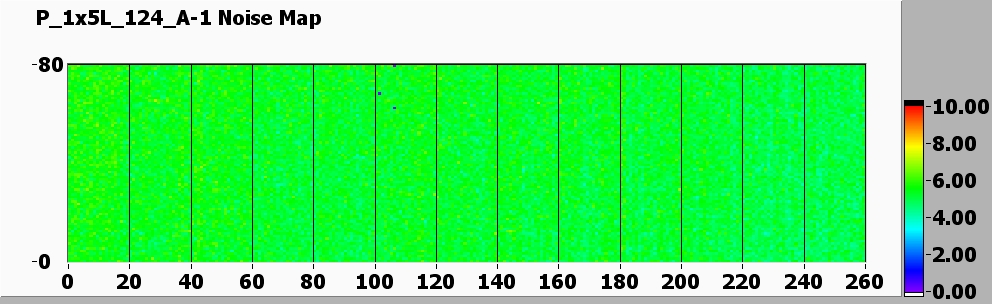

Noise MAP
![[IMAGE] of](P_1x5L_124_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5L_124_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
