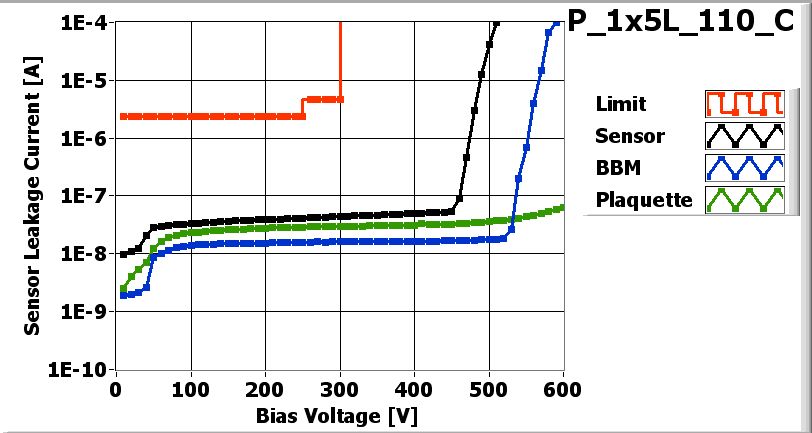

![[IMAGE] of](P_1x5L_110_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_110_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 4/10/2007
| Part | ID |
|---|---|
| BBM | BBM_110-1x5 |
| VHDI | 1x5L_258 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 06A |
| ROC1 | XW4KFXT | 20D |
| ROC2 | XW4KFXT | 05B |
| ROC3 | XW4KFXT | 11B |
| ROC4 | XW4KFXT | 12C |
Inspected by Lockwood Gale on date 4/12/2007
| LR_dev | 0.064 |
| LL_dev | 0.073 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE.No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/12/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/12/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/12/2007 by Ozhan Koybasi
P_1x5L_110_Con 4/16/2007 3:14 PM
P_1x5L_110_Con 4/16/2007 3:14 PM
PLAQUETTE TESTED on 2007-04-16 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 132 | 126 | 124 | 124 | 128 | |
| Vana | 117 | 122 | 133 | 120 | 129 | |
| Cal_Del | 99 | 89 | 87 | 89 | 92 | |
| Vthrs_Comp | 64 | 67 | 66 | 70 | 75 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

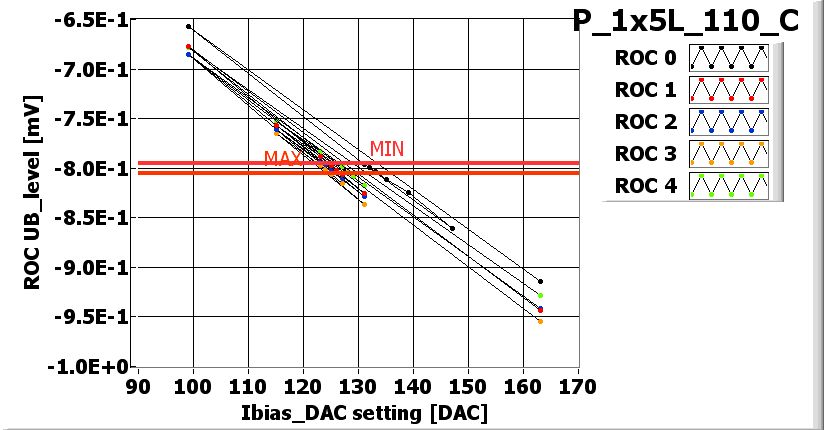

![[IMAGE] of](P_1x5L_110_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

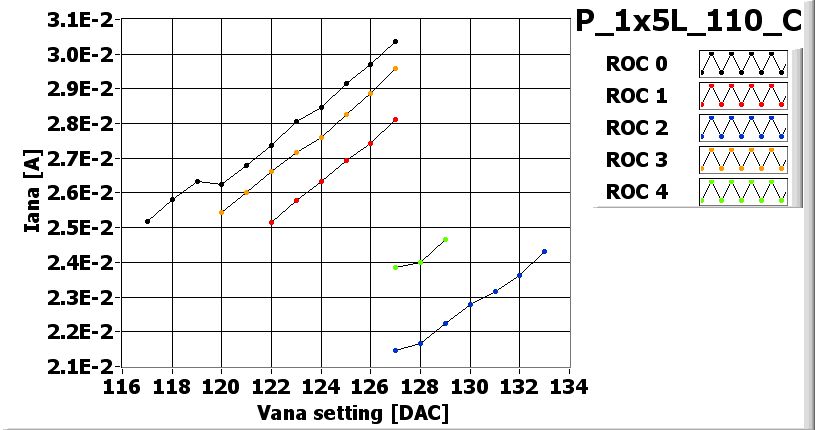

![[IMAGE] of](P_1x5L_110_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_110_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_110_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_110_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_110_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 140 | 135 | 115 | 175 | 130 |
| Vsf | 140 | 135 | 135 | 135 | 140 |
| VoffsetOp | 75 | 45 | 80 | 60 | 90 |
| VIbias_PH | 100 | 110 | 95 | 105 | 95 |

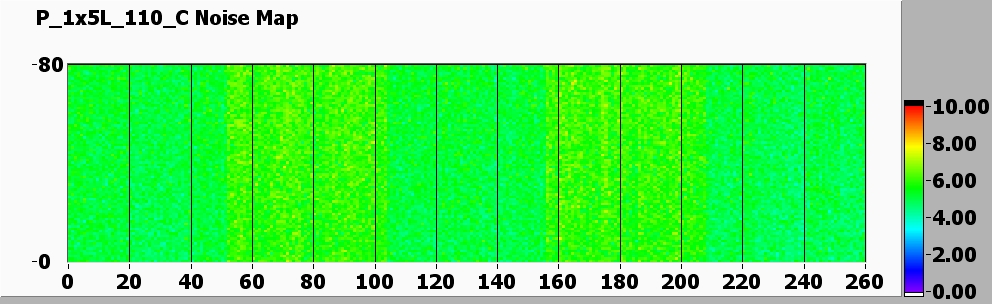

Noise MAP
![[IMAGE] of](P_1x5L_110_C-580-noise.jpg)

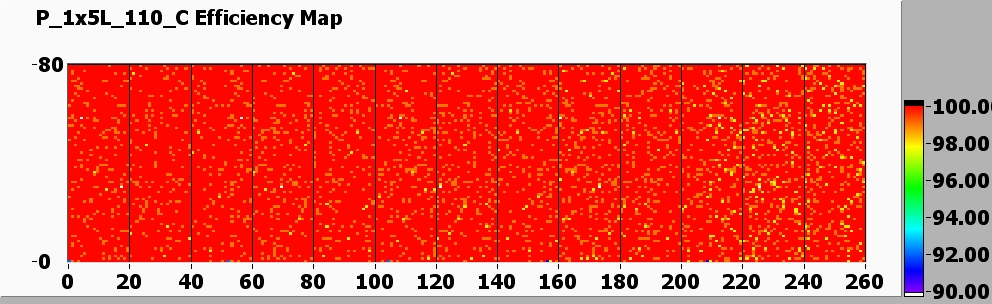

Efficiency MAP
![[IMAGE] of](P_1x5L_110_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
