P_1x5L_097

P_1x5L_097_C

Production testing

Date:6/27/2007

Operator: Emily Grace

start testing time:11:06 AM

Sensor: S_1x5L_09, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KZNG1JT 05A

ROC1 KZNG1JT 15B

ROC2 KZNG1JT 15A

ROC3 KZNG1JT 55B

ROC4 KZNG1JT 65D

ROC	ROC wafer	Label
ROC0	KZNG1JT	05A
ROC1	KZNG1JT	15B
ROC2	KZNG1JT	15A
ROC3	KZNG1JT	55B
ROC4	KZNG1JT	65D

Depletion Voltage is -40 and suggested operational voltage is -80

Ibias_DAC, Ibias_DAC Data 150 144 166 144 158

Vana, VanaData 144 131 156 137 140

CalDelData and plots 64 78 77 62 77

VthrCompData and plots 79 77 90 82 74

TestDdata ,TestD Plots 14 0 0 0 2

LightData ,Light Plots 35 0 0 0 5

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

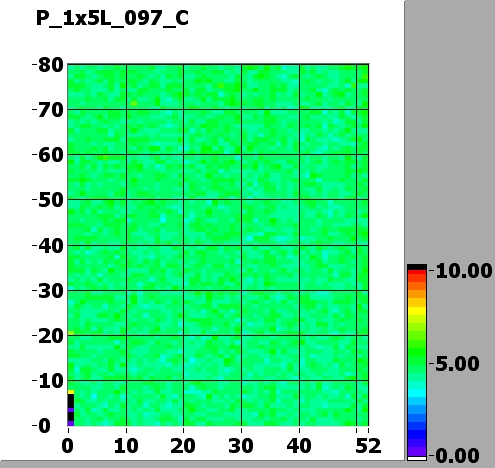

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	110	85	110	95
Vsf	145	140	155	140	140
VoffsetOp	75	75	105	80	65
VIbias_PH	105	105	100	100	100

ROC0 NOISE			MEAN = 4.601576 SIGMA = 0.363502
ROC1 NOISE			MEAN = 4.835759 SIGMA = 0.373631

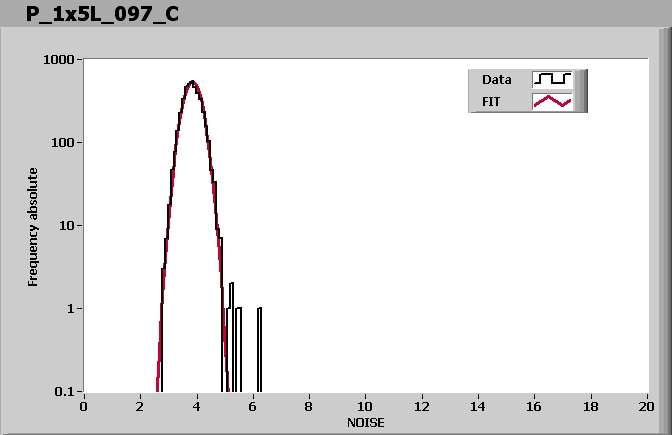

ROC2 NOISE			MEAN = 3.839722 SIGMA = 0.305841
ROC3 NOISE			MEAN = 4.692501 SIGMA = 0.385206
ROC4 NOISE			MEAN = 4.753000 SIGMA = 0.368950

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:32 AM

Ibias_DAC, Ibias_DAC Data	150	144	166	144	158
Vana, VanaData	144	131	156	137	140
CalDelData and plots	64	78	77	62	77
VthrCompData and plots	79	77	90	82	74
TestDdata ,TestD Plots	14	0	0	0	2
LightData ,Light Plots	35	0	0	0	5
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
