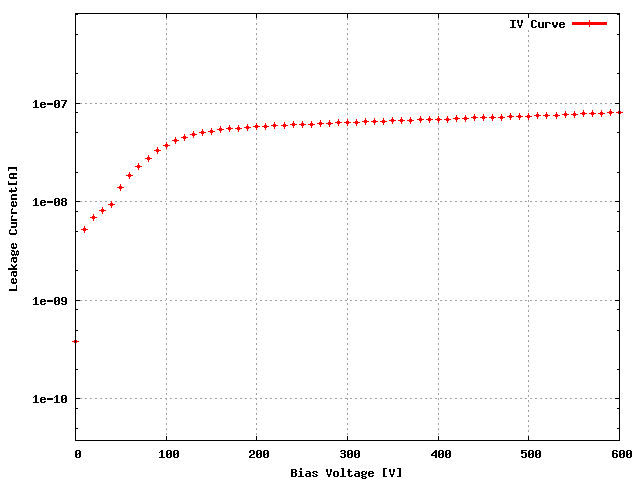

Sensor: S_1x5L_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W20_XP4K3AT | 14A |
| ROC1 | W20_XP4K3AT | 13C |
| ROC2 | W20_XP4K3AT | 13B |
| ROC3 | W20_XP4K3AT | 13A |
| ROC4 | W20_XP4K3AT | 12C |
| Ibias_DAC, Ibias_DAC Data | 132 | 141 | 135 | 140 | 127 |
| Vana, VanaData | 127 | 127 | 118 | 139 | 127 |
| CalDelData and plots | 80 | 84 | 76 | 71 | 87 |
| VthrCompData and plots | 85 | 75 | 80 | 83 | 68 | Depletion Voltage is -42 and suggested operational voltage is -82
| TestDdata ,TestD Plots | 0 | 0 | 31 | 29 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): DEAD pixels again
This Device have been tested 2Times prior to this one and here are the links to the previous tests:End testing time: 4:48 PM
