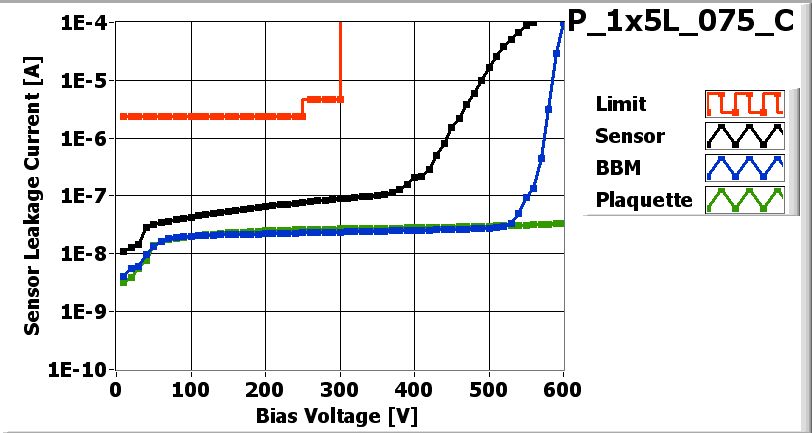

![[IMAGE] of](P_1x5L_075_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_075_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 1/24/2007
| Part | ID |
|---|---|
| BBM | BBM_075-1x5 |
| VHDI | 1x5L_237 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 49B |
| ROC1 | XE4K3KT | 52B |
| ROC2 | XE4K3KT | 54B |
| ROC3 | XE4K3KT | 58B |
| ROC4 | XE4K3KT | 54C |
Inspected by Arndt Kirk on date 2/1/2007
| LR_dev | 0.040 |
| LL_dev | 0.047 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 2/1/2007 by Arndt Kirk
P_1x5L_075_Con 2/2/2007 11:01 AM
P_1x5L_075_Con 2/2/2007 11:01 AM
PLAQUETTE TESTED on 2007-02-02 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 144 | 138 | 142 | 142 | 142 | |
| Vana | 106 | 133 | 133 | 124 | 131 | |
| Cal_Del | 73 | 80 | 74 | 72 | 94 | |
| Vthrs_Comp | 71 | 82 | 75 | 79 | 65 | |
| Unbumped | 0 | 0 | 1 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

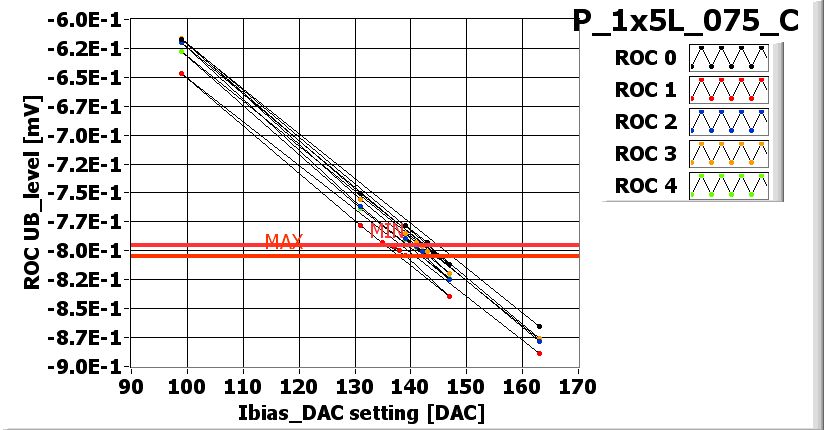

![[IMAGE] of](P_1x5L_075_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

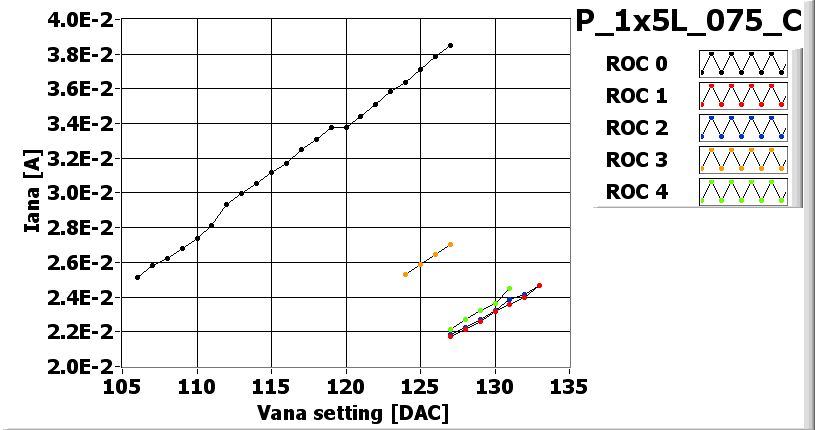

![[IMAGE] of](P_1x5L_075_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_075_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_075_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_075_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_075_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
