P_1x5L_062

P_1x5L_062_C

Production testing

Date:4/6/2007

Operator: Cameron McKinney

start testing time:10:43 AM

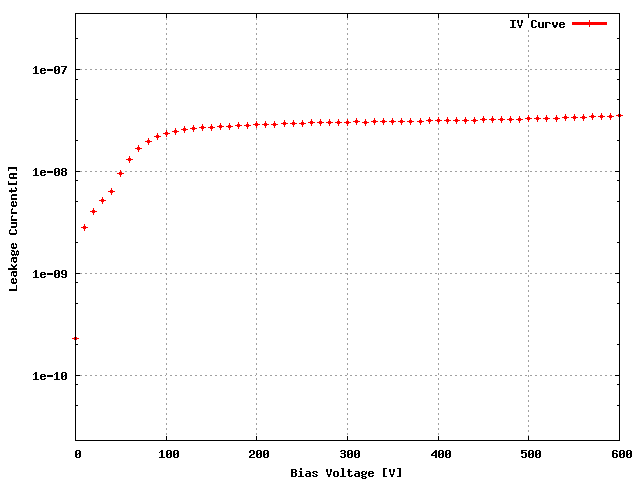

Sensor: S_1x5L_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 XH4KFBT 03D

ROC1 XH4KFBT 05B

ROC2 XH4KFBT 05A

ROC3 XH4KFBT 04D

ROC4 XH4KFBT 11C

ROC	ROC wafer	Label
ROC0	XH4KFBT	03D
ROC1	XH4KFBT	05B
ROC2	XH4KFBT	05A
ROC3	XH4KFBT	04D
ROC4	XH4KFBT	11C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 126 136 128 126 138

Vana, VanaData 124 135 127 128 146

CalDelData and plots 88 96 84 104 68

VthrCompData and plots 65 77 73 63 79

TestDdata ,TestD Plots 0 0 0 7 2

LightData ,Light Plots 0 0 0 1 25

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	125	105	115	100	95
Vsf	135	140	135	135	145
VoffsetOp	70	85	85	75	95
VIbias_PH	100	95	100	105	100

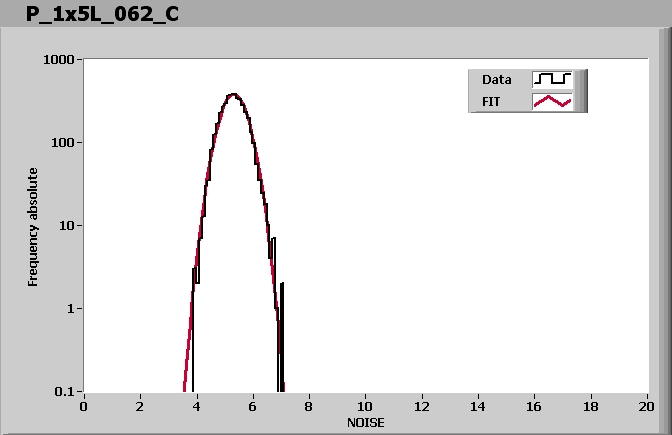

ROC0 NOISE			MEAN = 5.315133 SIGMA = 0.438068
ROC1 NOISE			MEAN = 5.142901 SIGMA = 0.400266
ROC2 NOISE			MEAN = 4.642228 SIGMA = 0.368350

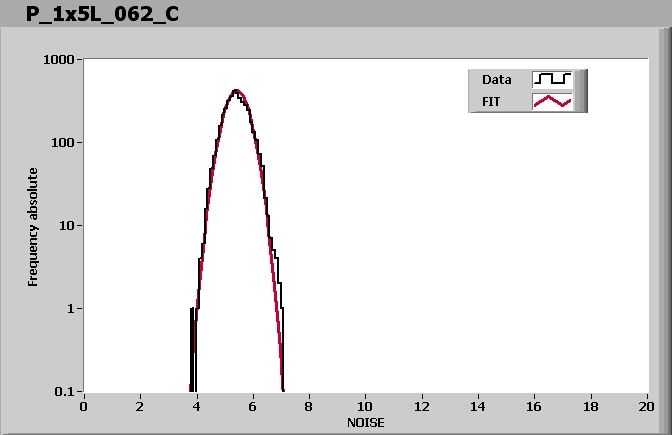

ROC3 NOISE			MEAN = 5.414055 SIGMA = 0.405849
ROC4 NOISE			MEAN = 4.814551 SIGMA = 0.372016

Comment (if any): Good, but 25 bad pixels shown on ROC4 on the light test.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:03 AM

Ibias_DAC, Ibias_DAC Data	126	136	128	126	138
Vana, VanaData	124	135	127	128	146
CalDelData and plots	88	96	84	104	68
VthrCompData and plots	65	77	73	63	79
TestDdata ,TestD Plots	0	0	0	7	2
LightData ,Light Plots	0	0	0	1	25
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
