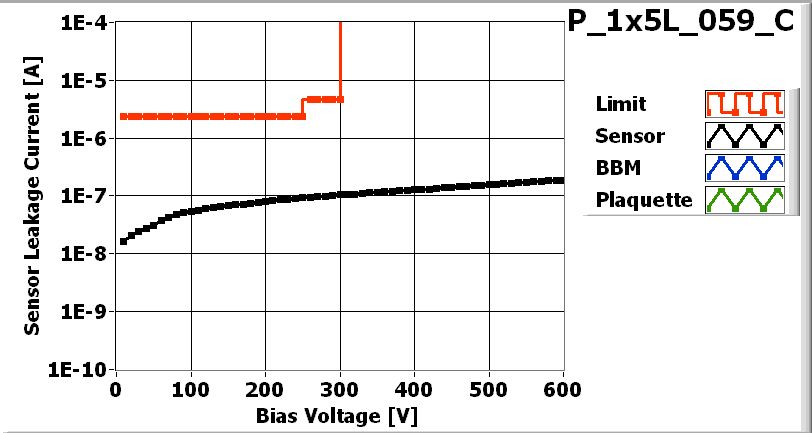

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_059_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_059-1x5 |
| VHDI | 1x5L_216 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XK4K3ET | 34A |
| ROC1 | XK4K3ET | 33A |
| ROC2 | XK4K3ET | 32B |
| ROC3 | XK4K3ET | 32A |
| ROC4 | XK4K3ET | 31A |
Inspected by Bolla Gino on date 9/6/2006
| LR_dev | 0.013 |
| LL_dev | 0.018 |
| FINAL COMMENT by Bolla Gino | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 9/6/2006 by Bolla Gino
PLAQUETTE TESTED on 2006-6-29 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 157 | 146 | 145 | 175 | 148 | |
| Vana | 128 | 138 | 127 | 141 | 130 | |
| Cal_Del | 97 | 87 | 98 | 74 | 94 | |
| Vthrs_Comp | 82 | 69 | 67 | 89 | 70 | |
| Unbumped | 0 | 0 | 2 | 3 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 1 | 0 | |
| Total BAD | 0 | 0 | 2 | 4 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_059_C_Ibias-dac.jpg) |

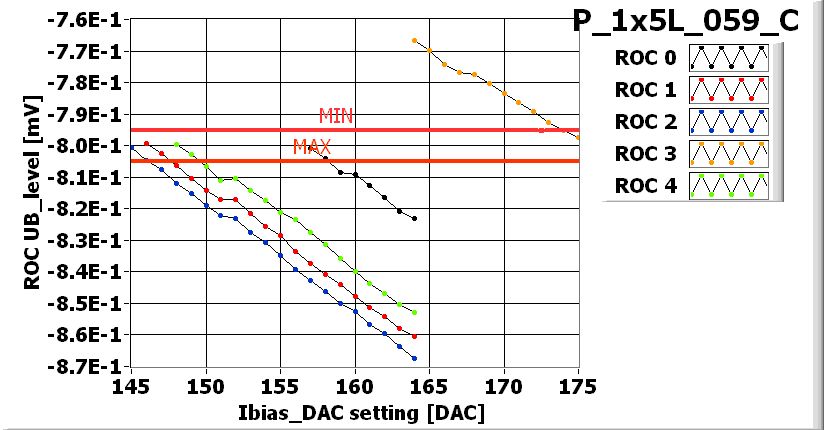

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_059_C_Vana.jpg) |

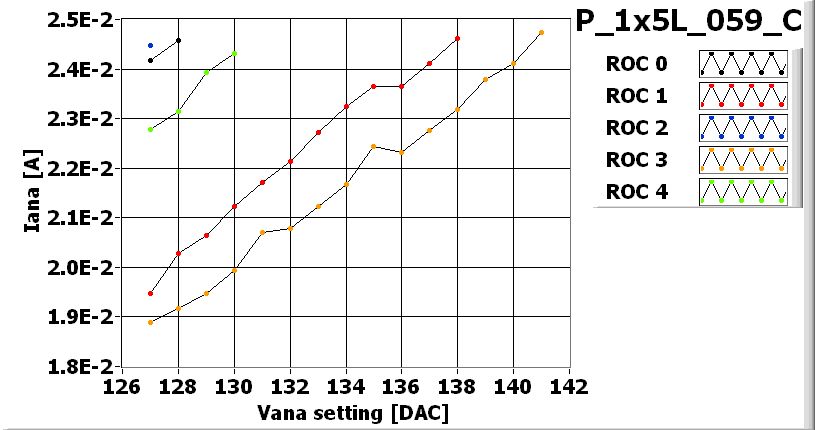

VANA_XML-File |
![[IMAGE] of](P_1x5L_059_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_059_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_059_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_059_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-09-11
