P_1x5L_052

P_1x5L_052_C

Production testing

Date:6/25/2007

Operator: Emily Grace

start testing time:11:29 AM

Sensor: S_1x5L_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KZNG1JT 13B

ROC1 KZNG1JT 73A

ROC2 KZNG1JT 42D

ROC3 KZNG1JT 33C

ROC4 KZNG1JT 53B

ROC	ROC wafer	Label
ROC0	KZNG1JT	13B
ROC1	KZNG1JT	73A
ROC2	KZNG1JT	42D
ROC3	KZNG1JT	33C
ROC4	KZNG1JT	53B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 170 142 156 156 150

Vana, VanaData 143 133 150 121 151

CalDelData and plots 70 97 78 82 74

VthrCompData and plots 88 78 90 72 89

TestDdata ,TestD Plots 4 2 0 0 1

LightData ,Light Plots 8 3 0 0 18

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	110	95	140	100
Vsf	145	135	150	135	145
VoffsetOp	110	65	100	65	75
VIbias_PH	100	100	100	95	100

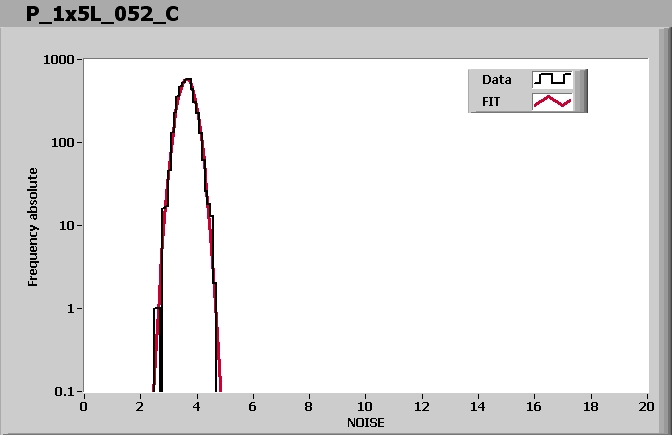

ROC0 NOISE			MEAN = 3.641503 SIGMA = 0.285427
ROC1 NOISE			MEAN = 4.676822 SIGMA = 0.373190
ROC2 NOISE			MEAN = 4.165688 SIGMA = 0.361732
ROC3 NOISE			MEAN = 4.520429 SIGMA = 0.349824
ROC4 NOISE			MEAN = 4.719027 SIGMA = 0.368975

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:54 AM

Ibias_DAC, Ibias_DAC Data	170	142	156	156	150
Vana, VanaData	143	133	150	121	151
CalDelData and plots	70	97	78	82	74
VthrCompData and plots	88	78	90	72	89
TestDdata ,TestD Plots	4	2	0	0	1
LightData ,Light Plots	8	3	0	0	18
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
