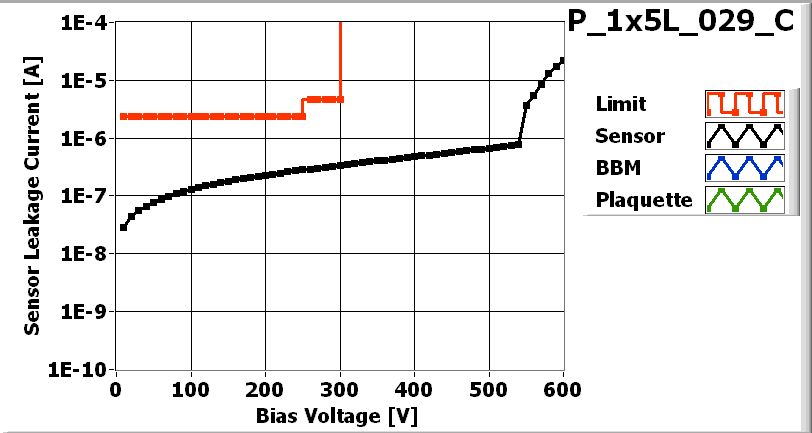

![[IMAGE] of](P_1x5L_029_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_029_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_029-1x5 |
| VHDI | 1x5L_210 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XL4K3DT | 53B |
| ROC1 | XL4K3DT | 49A |
| ROC2 | XL4K3DT | 49B |
| ROC3 | XL4K3DT | 52D |
| ROC4 | XL4K3DT | 54C |
Inspected by Arndt Kirk on date 2006-08-08
| LR_dev | 0.005 |
| LL_dev | 0.101 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-08 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-09 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 166 | 176 | 163 | 174 | 153 | |
| Vana | 114 | 141 | 129 | 125 | 125 | |
| Cal_Del | 79 | 72 | 91 | 73 | 96 | |
| Vthrs_Comp | 70 | 95 | 66 | 77 | 74 | |
| Unbumped | 4 | 1 | 24 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 4 | 2 | 24 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

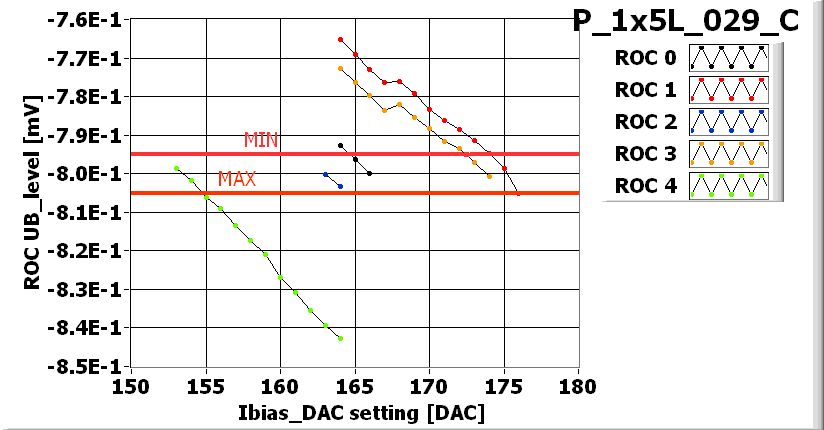

![[IMAGE] of](P_1x5L_029_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

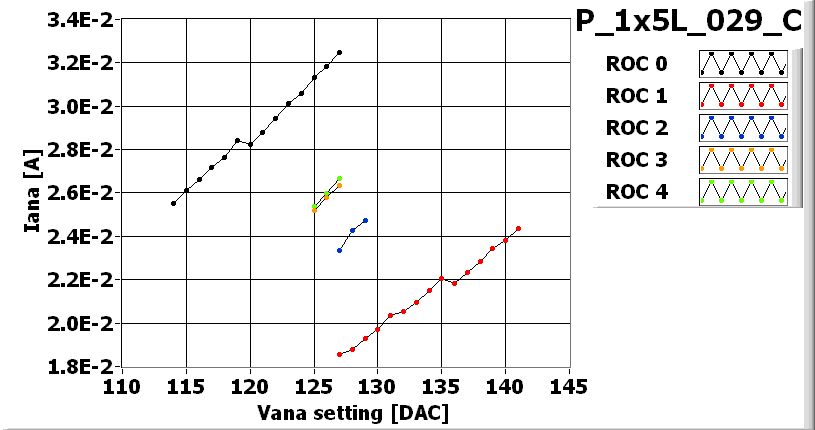

![[IMAGE] of](P_1x5L_029_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_029_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_029_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_029_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_029_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-10
