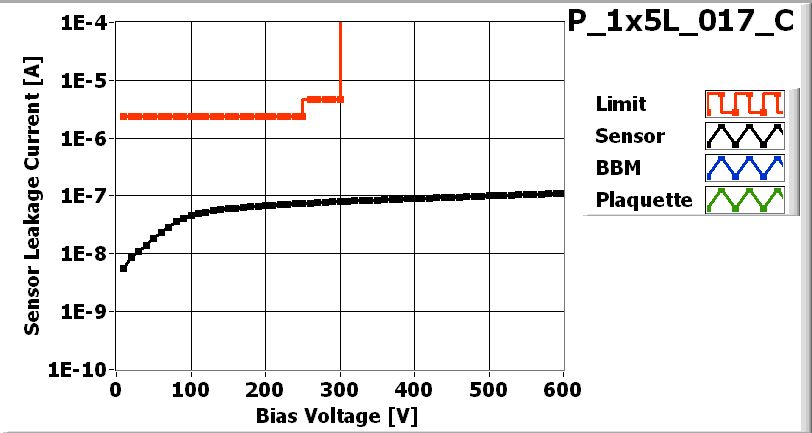

![[IMAGE] of](P_1x5L_017_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_017_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_017-1x5 |
| VHDI | 1x5L_208 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XL4K3DT | 57C |
| ROC1 | XL4K3DT | 56D |
| ROC2 | XL4K3DT | 58C |
| ROC3 | XL4K3DT | 55B |
| ROC4 | XL4K3DT | 58D |
Inspected by Arndt Kirk on date 2006-07-19
| LR_dev | 0.060 |
| LL_dev | 0.071 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-19 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-20 by Bolla Gino
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 183 | 183 | 165 | 170 | 176 | |
| Vana | 135 | 129 | 133 | 115 | 144 | |
| Cal_Del | 87 | 73 | 105 | 84 | 78 | |
| Vthrs_Comp | 73 | 95 | 71 | 73 | 85 | |
| Unbumped | 1 | 5 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 1 | 0 | 0 | 0 | |
| Total BAD | 1 | 6 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

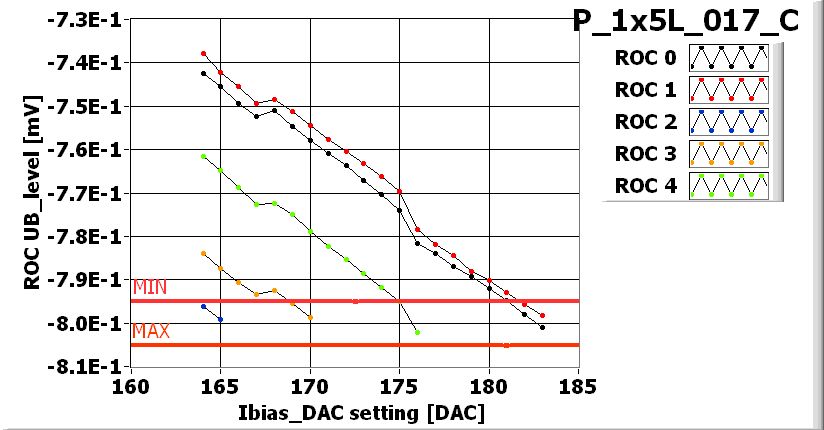

![[IMAGE] of](P_1x5L_017_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_017_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_017_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_017_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_017_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_017_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-21
