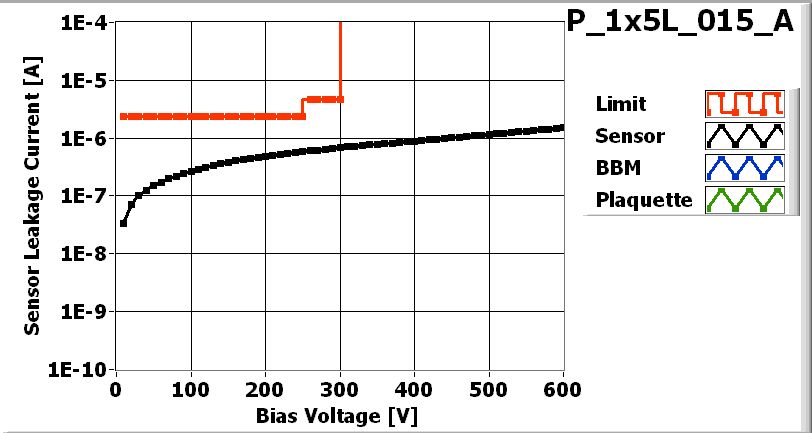

![[IMAGE] of](P_1x5L_015_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

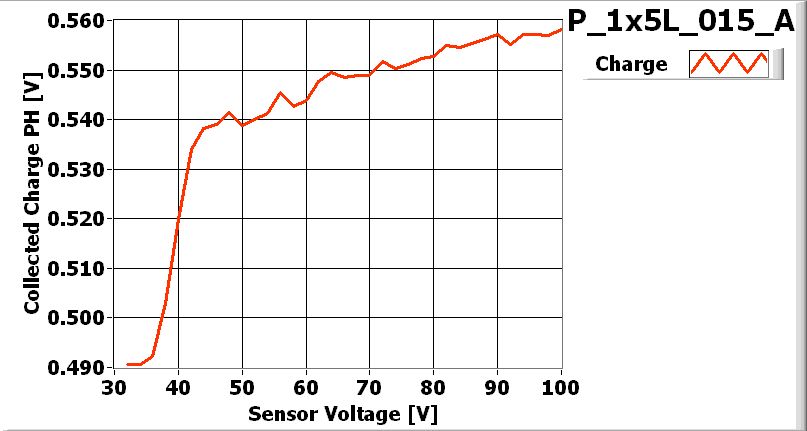

![[IMAGE] of](P_1x5L_015_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_015-1x5 |
| VHDI | 1x5L_206 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X54JP2T | 14A |
| ROC1 | X54JP2T | 13D |
| ROC2 | X54JP2T | 13C |
| ROC3 | X54JP2T | 13B |
| ROC4 | X54JP2T | 13A |
Inspected by Arndt Kirk on date 2006-07-18
| LR_dev | 0.078 |
| LL_dev | 0.044 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-18 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-19 by Stacy Kouba
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 159 | 166 | 158 | 175 | 163 | |
| Vana | 126 | 127 | 131 | 127 | 132 | |
| Cal_Del | 80 | 79 | 74 | 94 | 83 | |
| Vthrs_Comp | 79 | 68 | 82 | 70 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

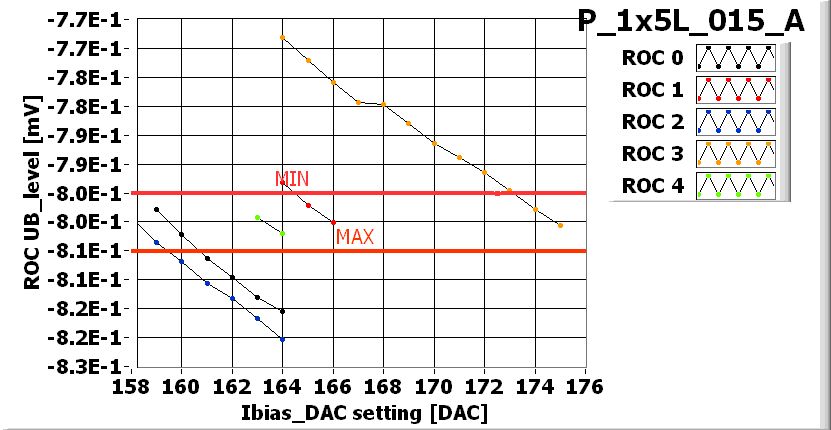

![[IMAGE] of](P_1x5L_015_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

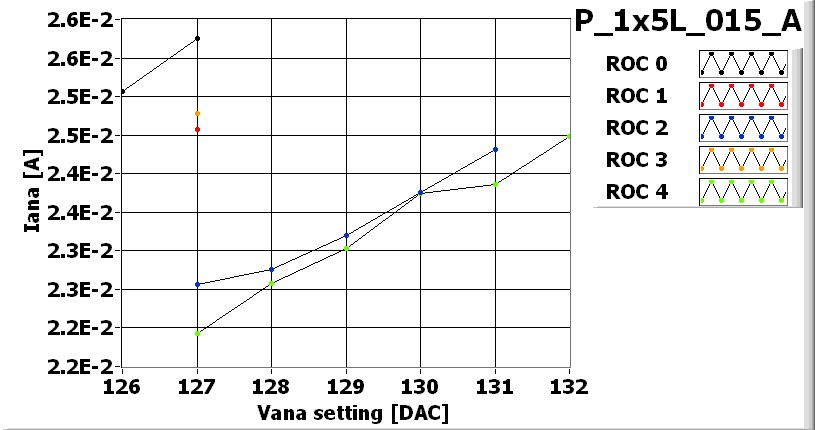

![[IMAGE] of](P_1x5L_015_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_015_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_015_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_015_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_015_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-19
