| IV_XML-File |
| Maximum Voltage 600 V |

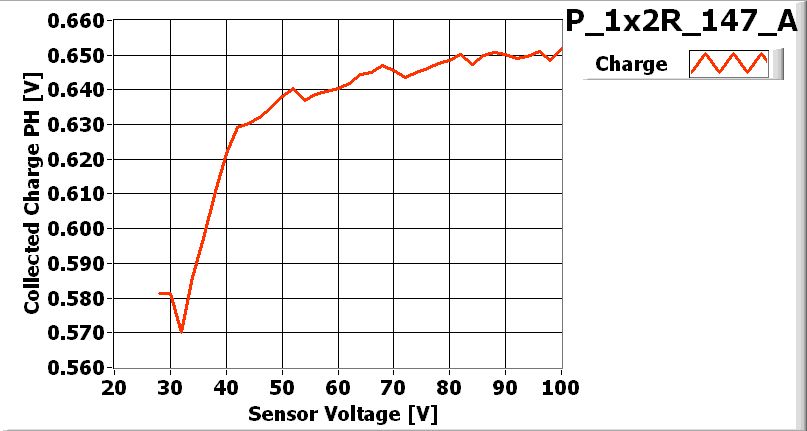

![[IMAGE] of](P_1x2R_147_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 1/19/2007
| Part | ID |
|---|---|
| BBM | BBM_147-1x2T |
| VHDI | 1x2R_255 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 52C |
| ROC1 | W30_X74K5RT | 52B |
Inspected by Lockwood Gale on date 1/25/2007
| LR_dev | 0.029 |
| LL_dev | 0.071 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 1/25/2007 by Lockwood Gale
P_1x2R_147_Aon 1/25/2007 3:09 PM
P_1x2R_147_Aon 1/25/2007 3:09 PM
PLAQUETTE TESTED on 2007-01-25 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 146 | 140 | |
| Vana | 142 | 113 | |
| Cal_Del | 79 | 79 | |
| Vthrs_Comp | 85 | 81 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

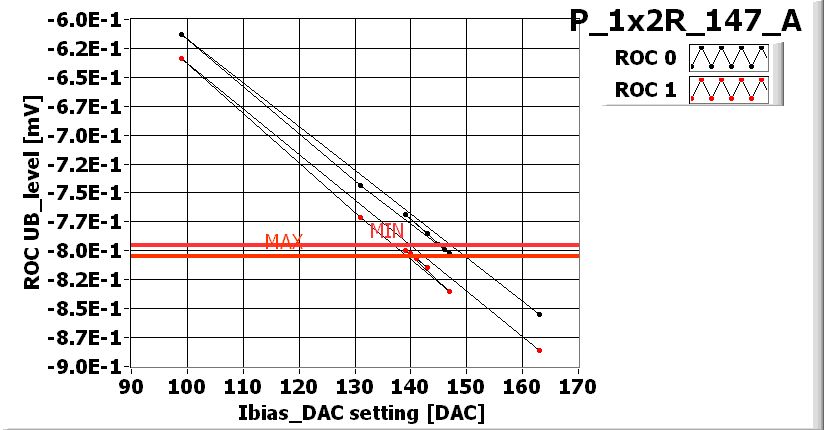

![[IMAGE] of](P_1x2R_147_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_147_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2R_147_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_147_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_147_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_147_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
