Sensor: S_1x2R_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 38A |
| ROC1 | W34_XA4K3PT | 37D |
| Ibias_DAC, Ibias_DAC Data | 130 | 140 |
| Vana, VanaData | 127 | 130 |
| CalDelData and plots | 101 | 82 |
| VthrCompData and plots | 63 | 67 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 2 | 1 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2R_142_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_142_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 115 | 120 |
| Vsf | 140 | 135 |
| VoffsetOp | 55 | 65 |
| VIbias_PH | 100 | 105 |

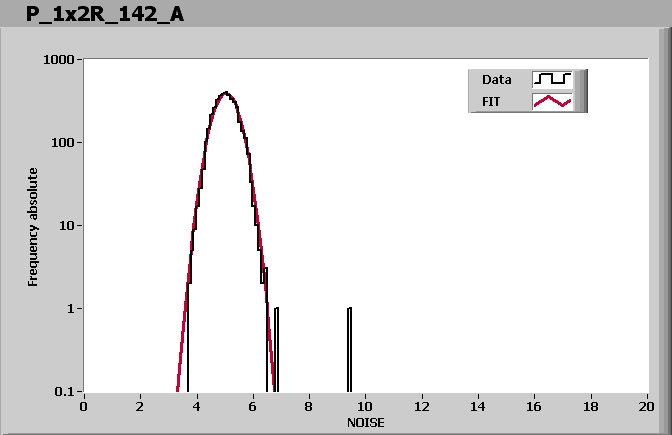

| ROC0 NOISE | ![[IMAGE] of](P_1x2R_142_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_142_A-580-noise-ROC0-HISTO.jpg) | MEAN = 5.035325SIGMA = 0.422166 |

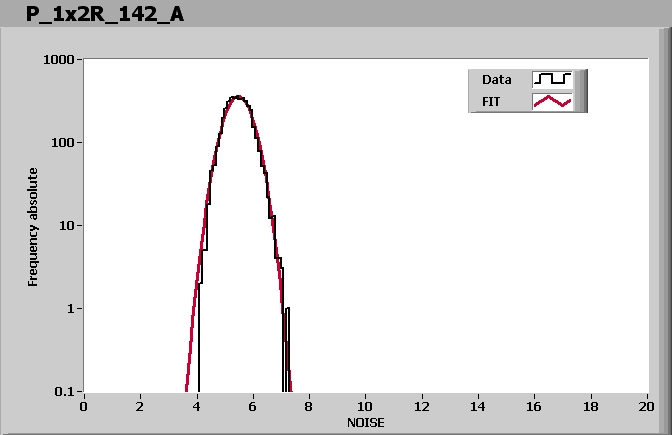

| ROC1 NOISE | ![[IMAGE] of](P_1x2R_142_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_142_A-580-noise-ROC1-HISTO.jpg) | MEAN = 5.472034SIGMA = 0.460052 |
Comment (if any): GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:49 PM
