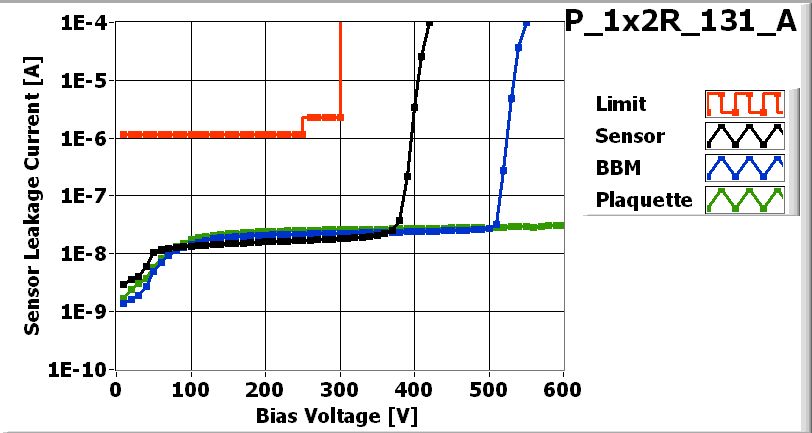

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_131_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 10/29/2006
| Part | ID |
|---|---|
| BBM | BBM_131-1x2T |
| VHDI | 1x2R_216 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W20_XP4K3AT | 47C |
| ROC1 | W20_XP4K3AT | 47B |
Inspected by Arndt Kirk on date 10/30/2006
| LR_dev | 0.041 |
| LL_dev | 0.057 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 10/30/2006 by Arndt Kirk
PLAQUETTE TESTED on 2006-10-31 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 158 | 152 | |
| Vana | 142 | 114 | |
| Cal_Del | 82 | 87 | |
| Vthrs_Comp | 76 | 69 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_131_A_Ibias-dac.jpg) |

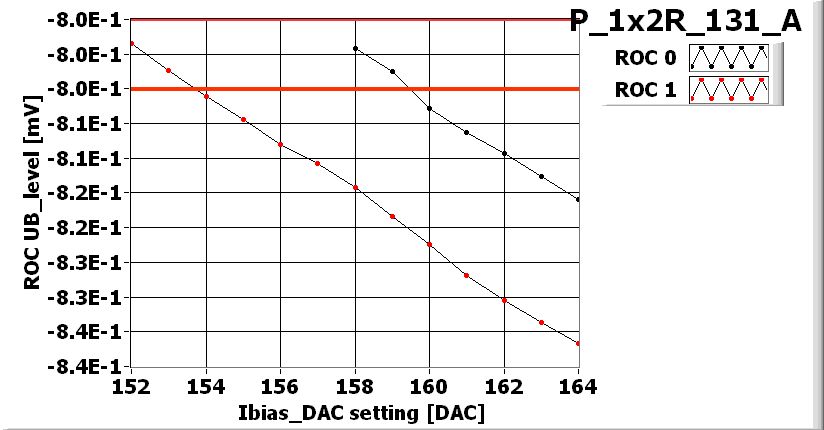

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_131_A_Vana.jpg) |

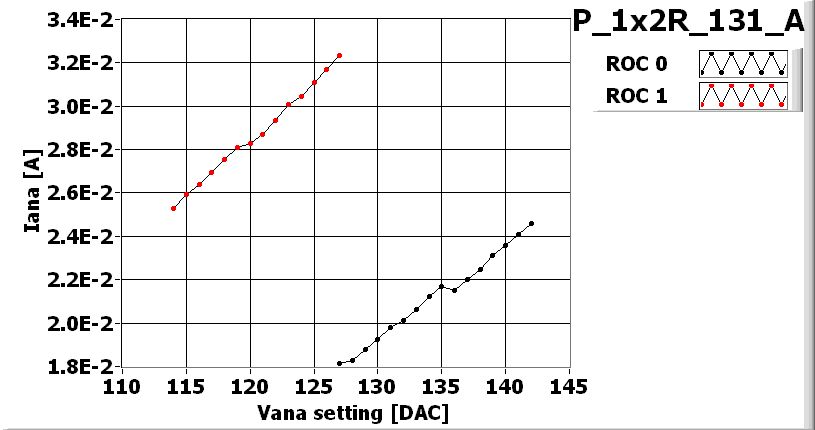

VANA_XML-File |
![[IMAGE] of](P_1x2R_131_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_131_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_131_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_131_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
