![[IMAGE] of](P_1x2R_124_A_IV.jpg)

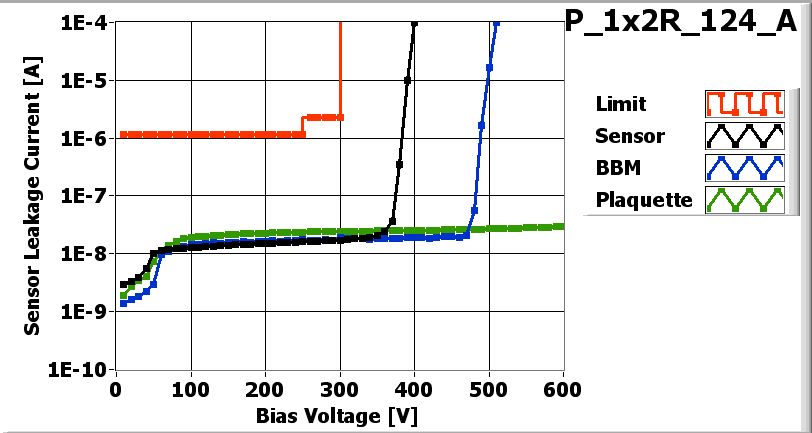

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_124_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Arndt Kirk on date 2/27/2007
| Part | ID |
|---|---|
| BBM | BBM_124-1x2T |
| VHDI | 1x2R_276 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 61D |
| ROC1 | W35_XH4K3HT | 61B |
Inspected by Arndt Kirk on date 3/1/2007
| LR_dev | 0.042 |
| LL_dev | 0.043 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 3/1/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/2/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 3/2/2007 by Arndt Kirk
P_1x2R_124_Aon 3/5/2007 11:02 AM
P_1x2R_124_Aon 3/5/2007 11:02 AM
PLAQUETTE TESTED on 2007-03-05 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 126 | 132 | |
| Vana | 111 | 127 | |
| Cal_Del | 91 | 72 | |
| Vthrs_Comp | 53 | 72 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_124_A_Ibias-dac.jpg) |

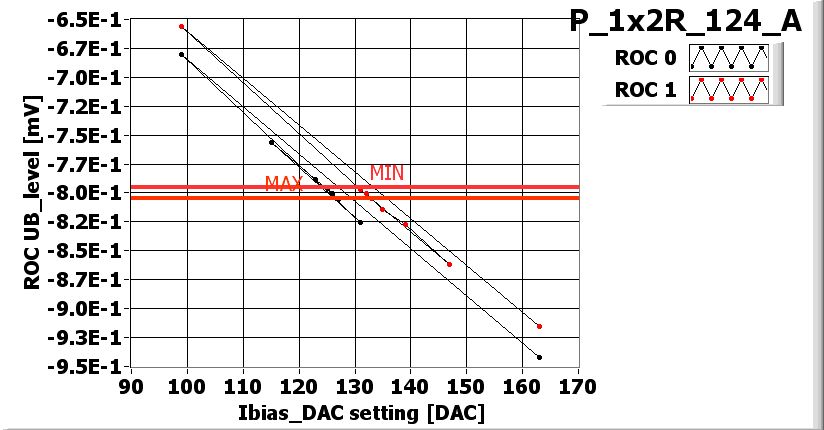

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_124_A_Vana.jpg) |

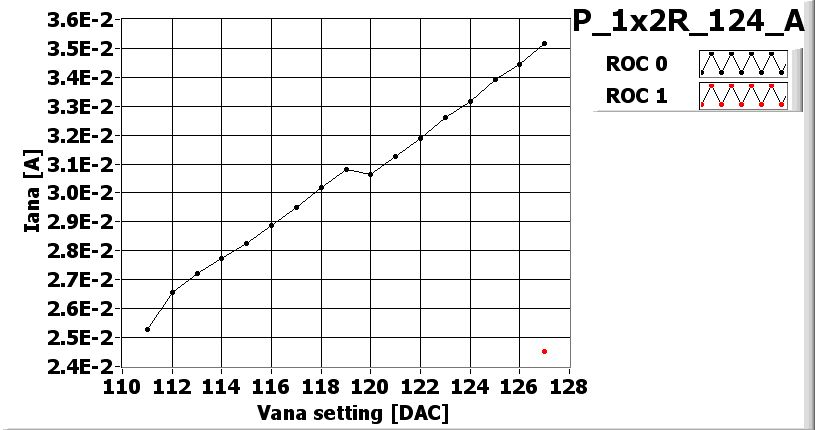

VANA_XML-File |
![[IMAGE] of](P_1x2R_124_ADead-PixelAlivetest.jpg){kind=tracking} |

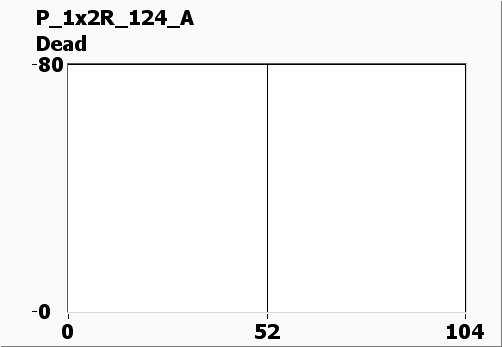

DEAD_XML-File |
![[IMAGE] of](P_1x2R_124_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_124_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_124_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 150 | 115 |
| Vsf | 140 | 140 |
| VoffsetOp | 65 | 60 |
| VIbias_PH | 95 | 110 |

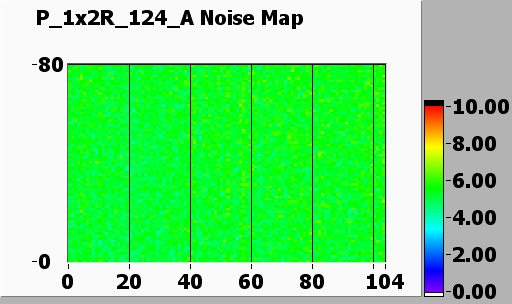

Noise MAP
![[IMAGE] of](P_1x2R_124_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_124_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
