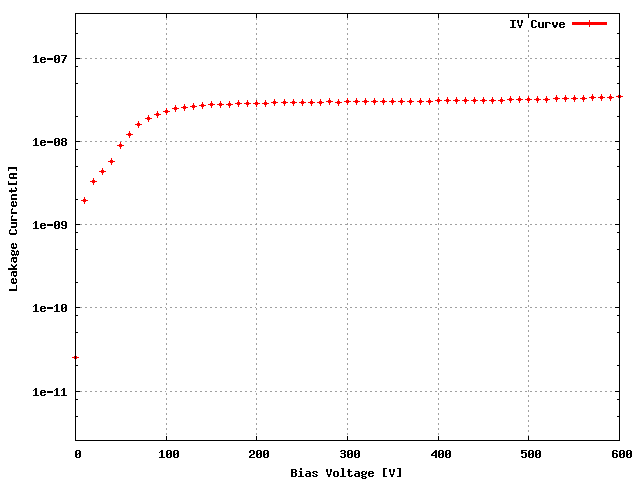

Sensor: S_1x2R_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 54C |
| ROC1 | W34_XA4K3PT | 54B |
| Ibias_DAC, Ibias_DAC Data | 140 | 144 |
| Vana, VanaData | 131 | 126 |
| CalDelData and plots | 87 | 83 |
| VthrCompData and plots | 78 | 76 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2R_115_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_115_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 155 | 105 |
| Vsf | 140 | 140 |
| VoffsetOp | 80 | 80 |
| VIbias_PH | 100 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2R_115_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_115_A-580-noise-ROC0-HISTO.jpg) | MEAN = 4.779631SIGMA = 0.370734 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_115_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_115_A-580-noise-ROC1-HISTO.jpg) | MEAN = 4.697838SIGMA = 0.383855 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:44 AM
