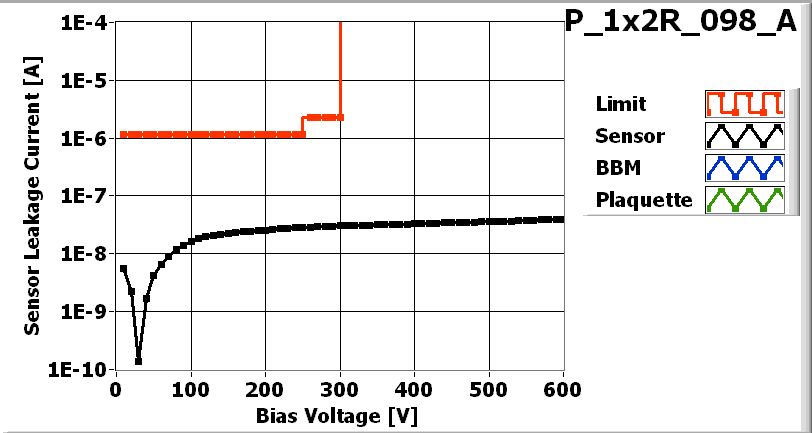

![[IMAGE] of](P_1x2R_098_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

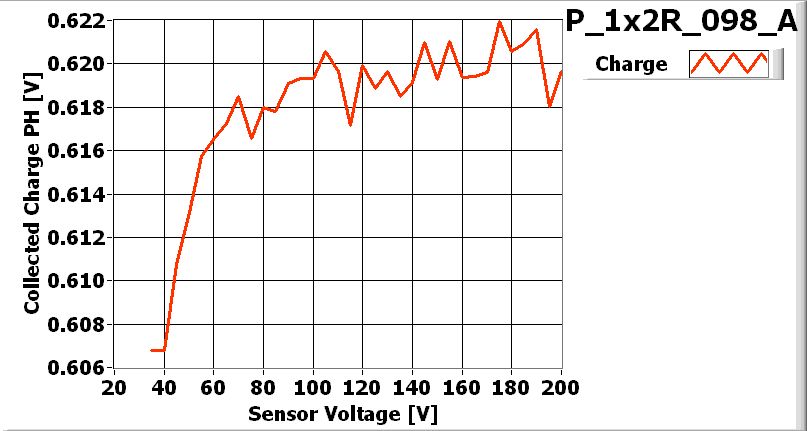

![[IMAGE] of](P_1x2R_098_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 60 V |
| Operational Voltage 100 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_098-1x2T |
| VHDI | 1x2R_207 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 17B |
| ROC1 | X74JP0T | 17A |
Inspected by Arndt Kirk on date 2006-07-11
| LR_dev | 0.033 |
| LL_dev | 0.035 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-11 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-11 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 158 | 171 | |
| Vana | 113 | 126 | |
| Cal_Del | 77 | 78 | |
| Vthrs_Comp | 73 | 80 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

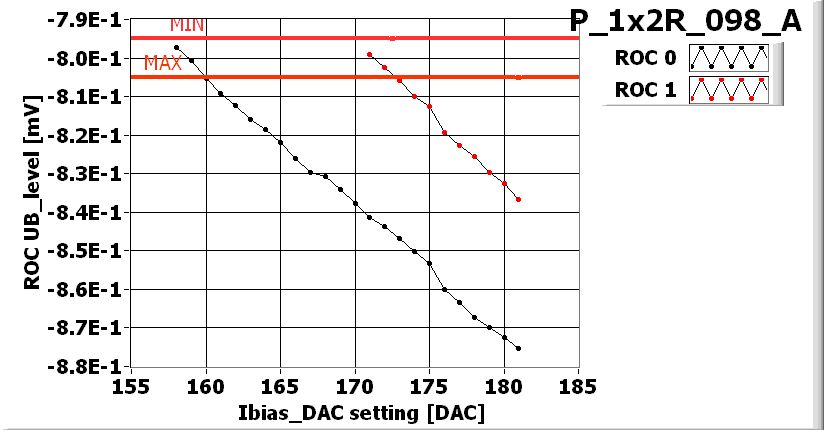

![[IMAGE] of](P_1x2R_098_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_098_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2R_098_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_098_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_098_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_098_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-18
