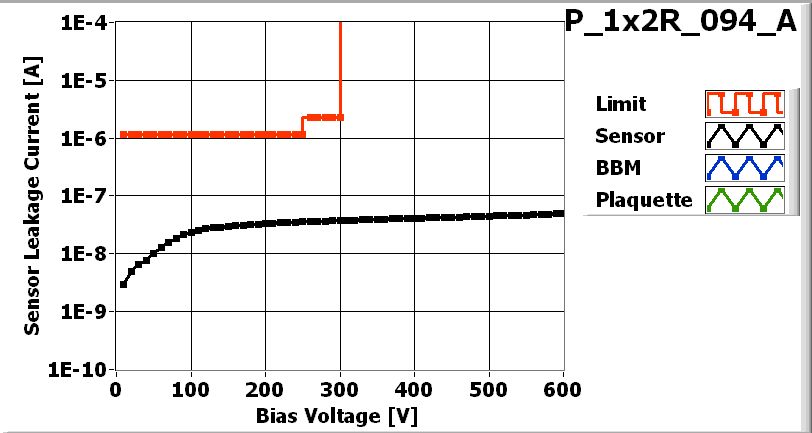

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_094_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_094-1x2T |
| VHDI | 1x2R_213 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XX4JPAT | 40D |
| ROC1 | XX4JPAT | 40C |
Inspected by Arndt Kirk on date 2006-07-28
| LR_dev | 0.037 |
| LL_dev | 0.049 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-07-28 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-31 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 152 | 170 | |
| Vana | 130 | 139 | |
| Cal_Del | 84 | 70 | |
| Vthrs_Comp | 72 | 84 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_094_A_Ibias-dac.jpg) |

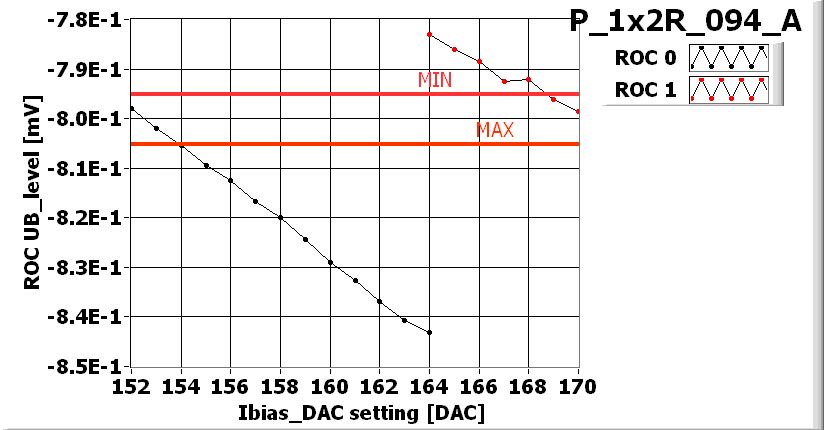

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_094_A_Vana.jpg) |

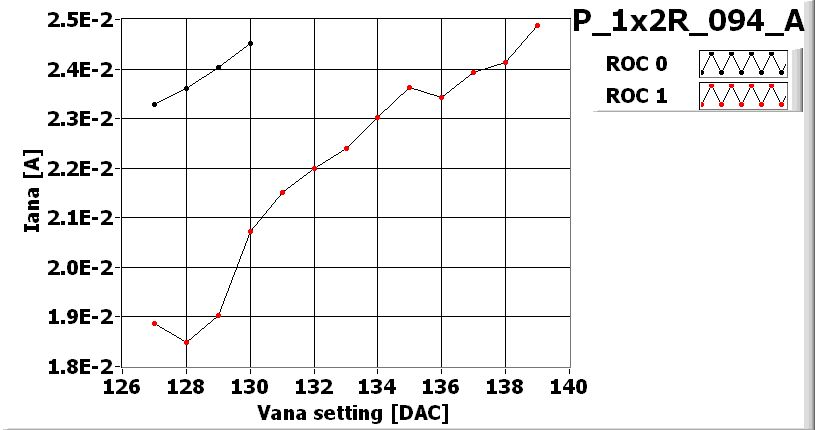

VANA_XML-File |

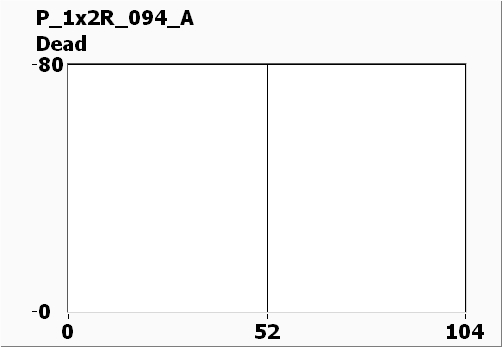

![[IMAGE] of](P_1x2R_094_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2R_094_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_094_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_094_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-01
