| IV_XML-File |

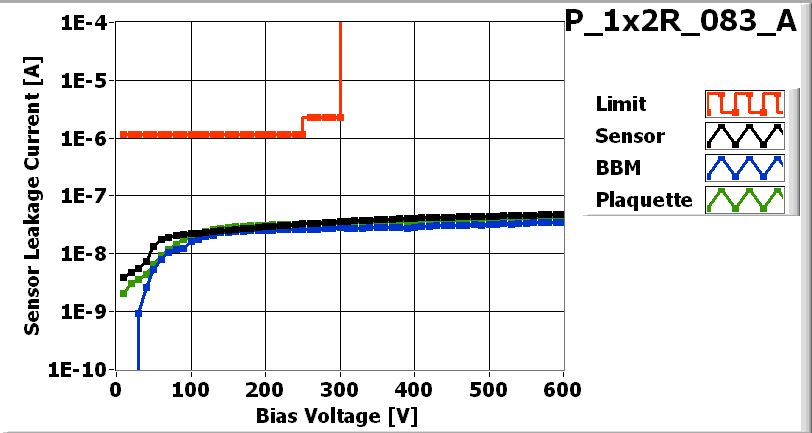

| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2R_083_A_LASER.jpg)
| LASER_XML-File |

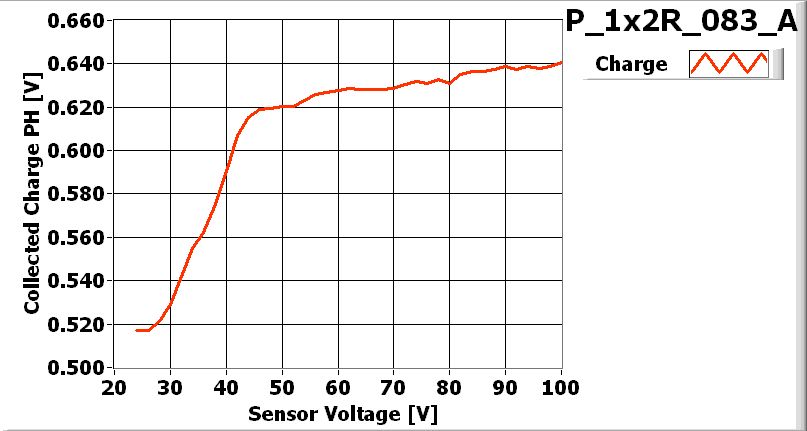

| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 11/7/2006
| Part | ID |
|---|---|
| BBM | BBM_083-1x2T |
| VHDI | 1x2R_227 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W18_XJ4K3FT | 35B |
| ROC1 | W18_XJ4K3FT | 35A |
Inspected by Graves Durand on date 11/13/2006
| LR_dev | 0.078 |
| LL_dev | 0.083 |
| FINAL COMMENT by Graves Durand | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 11/13/2006 by Graves Durand
PLAQUETTE TESTED on 2006-11-13 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 133 | 136 | |
| Vana | 132 | 140 | |
| Cal_Del | 82 | 66 | |
| Vthrs_Comp | 70 | 79 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2R_083_A_Ibias-dac.jpg) |

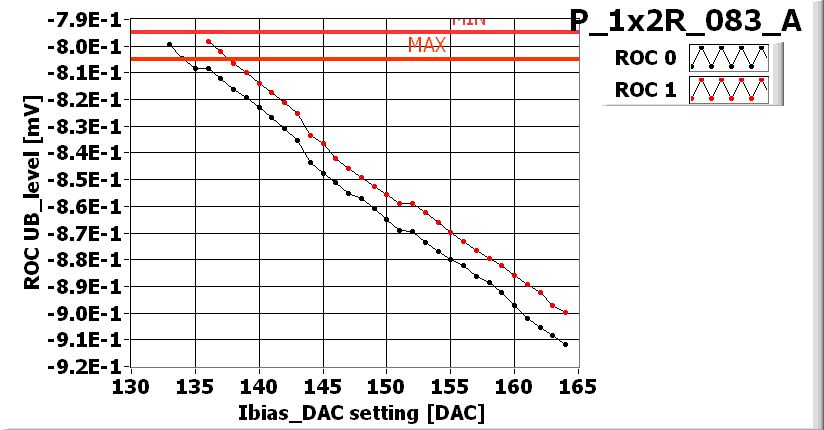

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x2R_083_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2R_083_ADead-PixelAlivetest.jpg){kind=tracking} |

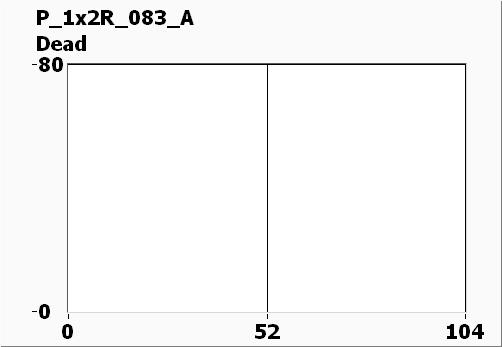

DEAD_XML-File |
![[IMAGE] of](P_1x2R_083_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2R_083_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2R_083_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
