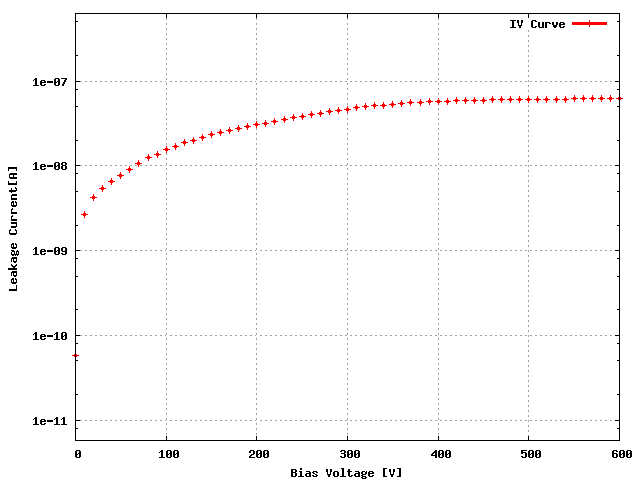

Sensor: S_1x2R_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 42D |
| ROC1 | W46_D3LQC5T | 42B |
| Ibias_DAC, Ibias_DAC Data | 156 | 150 |
| Vana, VanaData | 150 | 152 |
| CalDelData and plots | 75 | 97 |
| VthrCompData and plots | 89 | 87 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP at VMAX
![[IMAGE] of](P_1x2R_060_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2R_060_A-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 105 | 100 |
| Vsf | 145 | 145 |
| VoffsetOp | 95 | 115 |
| VIbias_PH | 95 | 95 |

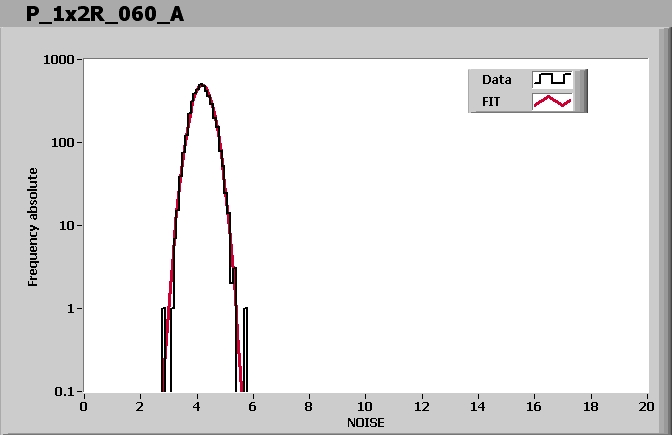

| ROC0 NOISE | ![[IMAGE] of](P_1x2R_060_A-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_060_A-580-noise-ROC0-HISTO.jpg) | MEAN = 4.190009SIGMA = 0.339561 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_060_A-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_060_A-580-noise-ROC1-HISTO.jpg) | MEAN = 4.037556SIGMA = 0.320248 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:10 AM
