P_1x2R_052_C-2

Production testing

Date:6/20/2007

Operator: Emily Grace

start testing time:9:21 AM

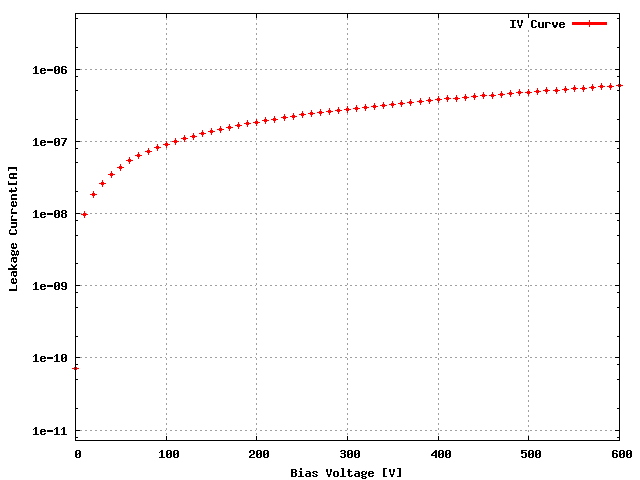

Sensor: S_1x2R_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0KZNG1JT43C
ROC1KZNG1JT63A

Depletion Voltage is -46 and suggested operational voltage is -86
Ibias_DAC, Ibias_DAC Data 154 158
Vana, VanaData 145 126
CalDelData and plots6673
VthrCompData and plots9083
TestDdata ,TestD Plots00
LightData ,Light Plots00
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe100145
Vsf145135
VoffsetOp9075
VIbias_PH105100

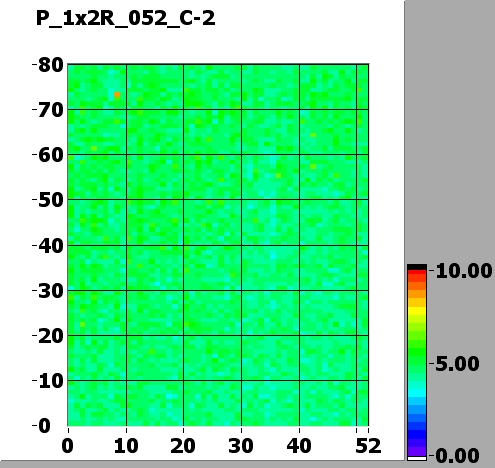

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.618584

SIGMA = 0.386618

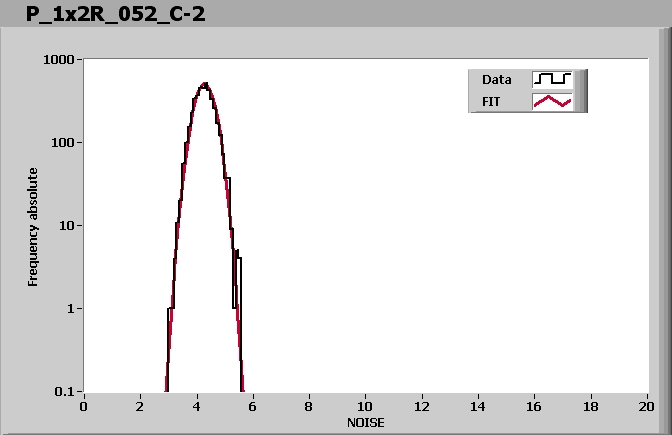

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.268211

SIGMA = 0.331379

Comment (if any):

This Device have been tested 2Times prior to this one and here are the links to the previous tests:

P_1x2R_052_C-1.html,

P_1x2R_052_C.html,

End testing time: 9:45 AM
