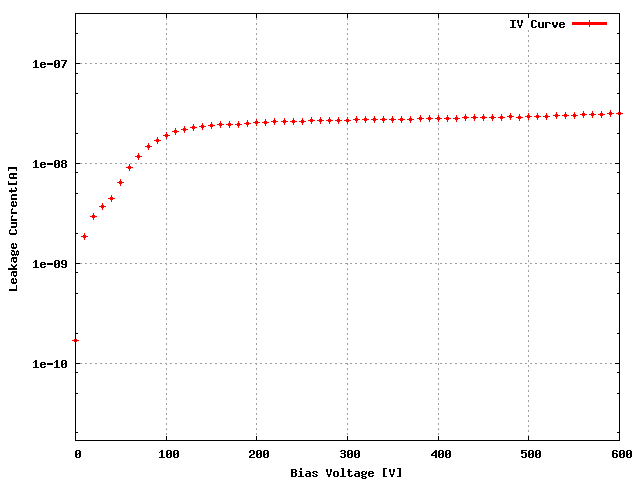

Sensor: S_1x2R_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W33_XC4K5LT | 25D |
| ROC1 | W33_XC4K5LT | 25B |
| Ibias_DAC, Ibias_DAC Data | 132 | 130 |
| Vana, VanaData | 117 | 140 |
| CalDelData and plots | 82 | 79 |
| VthrCompData and plots | 90 | 76 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |

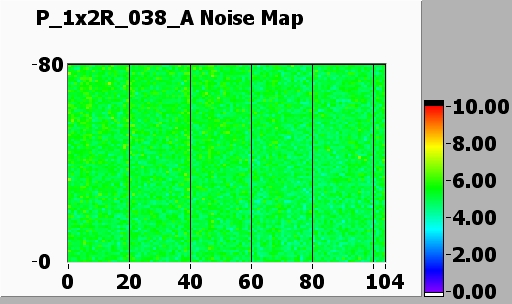

Noise MAP
![[IMAGE] of](P_1x2R_038_A-100-noise.jpg)

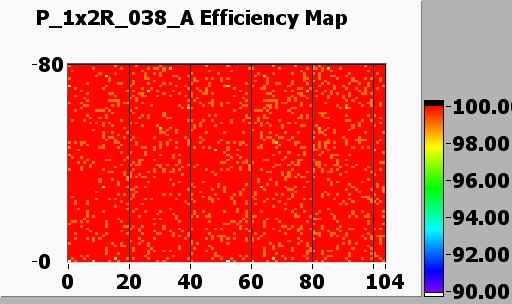

Efficiency MAP
![[IMAGE] of](P_1x2R_038_A-100-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 165 | 115 |
| Vsf | 140 | 140 |
| VoffsetOp | 70 | 85 |
| VIbias_PH | 100 | 100 |

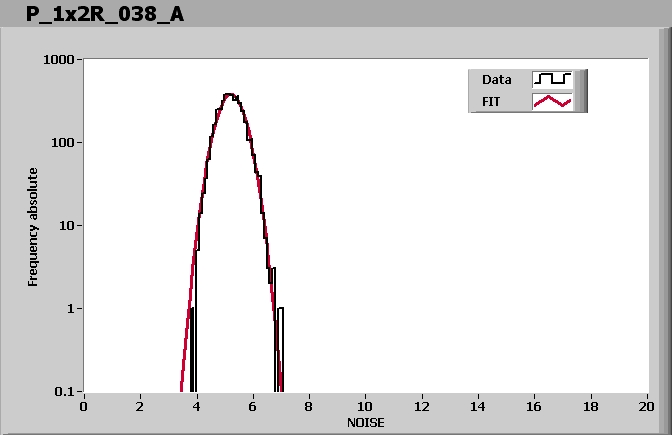

| ROC0 NOISE | ![[IMAGE] of](P_1x2R_038_A-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2R_038_A-100-noise-ROC0-HISTO.jpg) | MEAN = 5.213965SIGMA = 0.438403 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2R_038_A-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2R_038_A-100-noise-ROC1-HISTO.jpg) | MEAN = 5.035644SIGMA = 0.388439 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:05 PM
