Production testing

Date:6/4/2007

Operator: Emily Grace

start testing time:10:17 AM

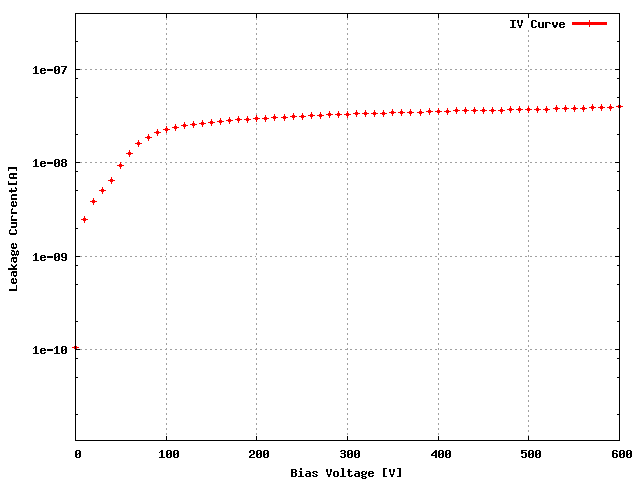

Sensor: S_1x2R_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W35_XH4K3HT03B
ROC1W35_XH4K3HT03A

Depletion Voltage is -42 and suggested operational voltage is -82
Ibias_DAC, Ibias_DAC Data 142 164
Vana, VanaData 124 141
CalDelData and plots9798
VthrCompData and plots7287
TestDdata ,TestD Plots01
LightData ,Light Plots00
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

Noise MAP at VMAX

[IMAGE] of

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe135100
Vsf140140
VoffsetOp7585
VIbias_PH95105

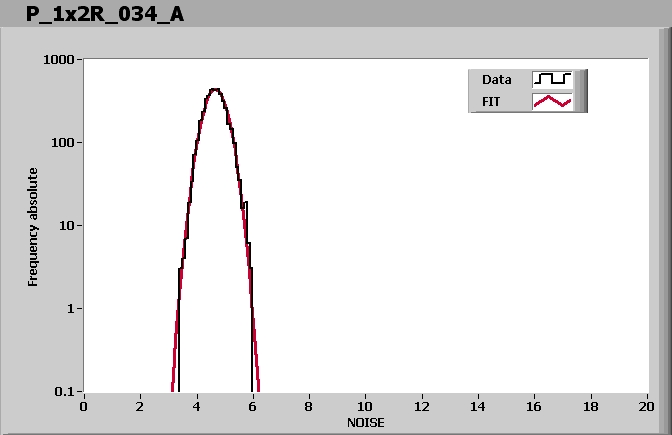

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.655213

SIGMA = 0.377284
ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.460137

SIGMA = 0.356586

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:41 AM
