P_1x2R_016_A-3

Production testing

Date:5/9/2007

Operator: Petra Merkel

start testing time:11:20 AM

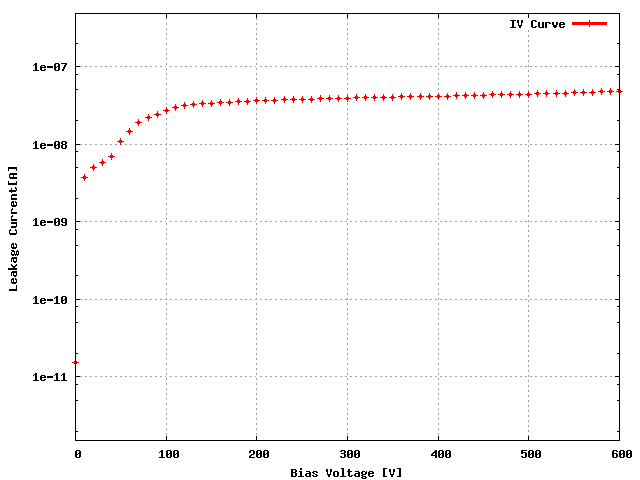

Sensor: S_1x2R_01, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0W49_D1LQG5T46D
ROC1W49_D1LQG5T46C

Depletion Voltage is -46 and suggested operational voltage is -86
Ibias_DAC, Ibias_DAC Data 144 154
Vana, VanaData 135 149
CalDelData and plots8878
VthrCompData and plots7989
TestDdata ,TestD Plots10
LightData ,Light Plots00
Pass/Fail TestD GOOD GOOD
Pass/Fail LIGHT GOOD GOOD

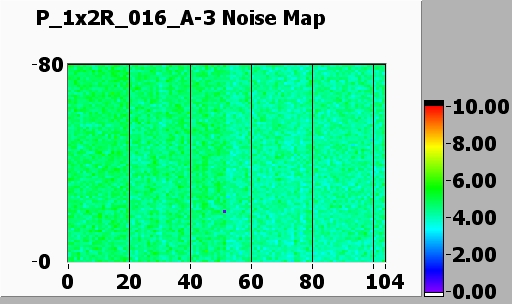

Noise MAP

[IMAGE] of

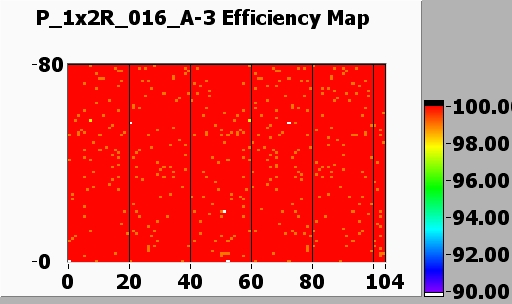

Efficiency MAP

[IMAGE] of

EXTRA DACs for NOISE

VHldDe100105
Vsf145145
VoffsetOp7090
VIbias_PH95105
ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.580959

SIGMA = 0.343489

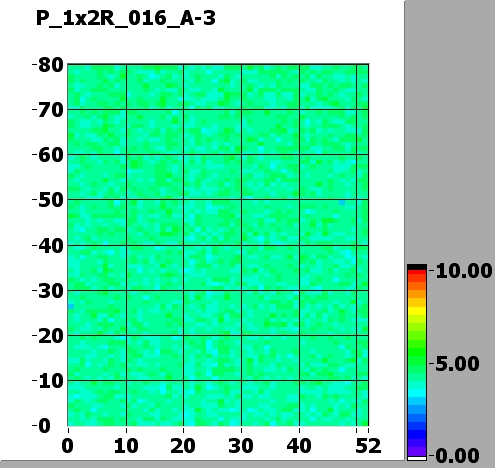

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.198010

SIGMA = 0.343884

Comment (if any): good

This Device have been tested 3Times prior to this one and here are the links to the previous tests:

P_1x2R_016_A-1.html,

P_1x2R_016_A-2.html,

P_1x2R_016_A.html,

End testing time: 11:37 AM
