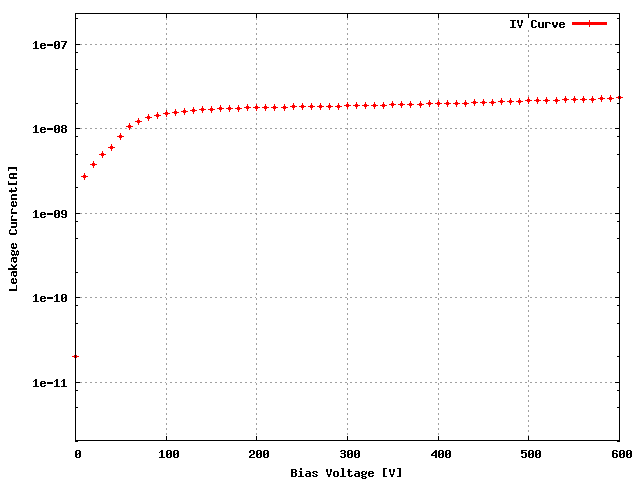

Sensor: S_1x2L_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 62D |
| ROC1 | KFNG13T | 62B |
| Ibias_DAC, Ibias_DAC Data | 160 | 144 |
| Vana, VanaData | 130 | 128 |
| CalDelData and plots | 73 | 63 |
| VthrCompData and plots | 77 | 81 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 2 | 1 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_165_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_165_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 115 | 125 |
| Vsf | 140 | 140 |
| VoffsetOp | 75 | 75 |
| VIbias_PH | 105 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2L_165_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_165_C-580-noise-ROC0-HISTO.jpg) | MEAN = 5.050014SIGMA = 0.400121 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2L_165_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_165_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.948454SIGMA = 0.402556 |
Comment (if any): good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:48 PM
