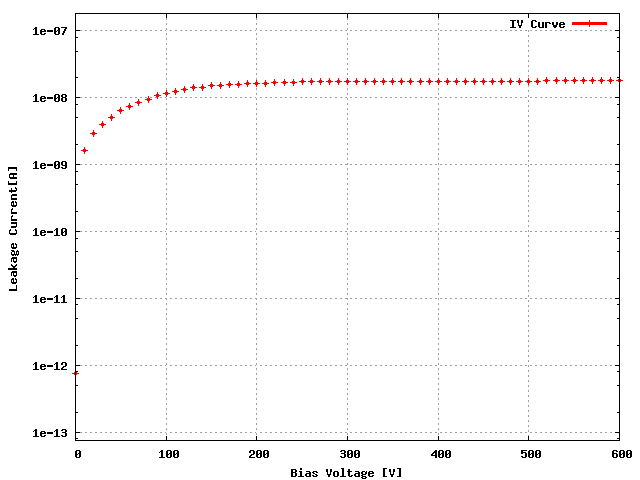

Sensor: S_1x2L_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KNN0GDT | 32B |
| ROC1 | KNN0GDT | 32A |
| Ibias_DAC, Ibias_DAC Data | 142 | 138 |
| Vana, VanaData | 131 | 141 |
| CalDelData and plots | 72 | 73 |
| VthrCompData and plots | 83 | 89 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 0 | 0 |
| LightData ,Light Plots | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_163_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_163_C-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 130 | 100 |
| Vsf | 140 | 140 |
| VoffsetOp | 105 | 90 |
| VIbias_PH | 105 | 100 |
| ROC0 NOISE | ![[IMAGE] of](P_1x2L_163_C-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_163_C-580-noise-ROC0-HISTO.jpg) | MEAN = 4.628079SIGMA = 0.360354 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2L_163_C-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_163_C-580-noise-ROC1-HISTO.jpg) | MEAN = 4.674732SIGMA = 0.363100 |
Comment (if any): good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:55 PM
