Sensor: S_1x2L_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 20D |
| ROC1 | X94KFJT | 21C |
| Ibias_DAC, Ibias_DAC Data | 120 | 128 |
| Vana, VanaData | 125 | 120 |
| CalDelData and plots | 90 | 84 |
| VthrCompData and plots | 62 | 77 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 441 | 2 |
| LightData ,Light Plots | 0 | 1 |
| Pass/Fail TestD | BAD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD |
Noise MAP
![[IMAGE] of](P_1x2L_159_C-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_159_C-1-580-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 115 | 145 |
| Vsf | 135 | 135 |
| VoffsetOp | 65 | 65 |
| VIbias_PH | 95 | 100 |

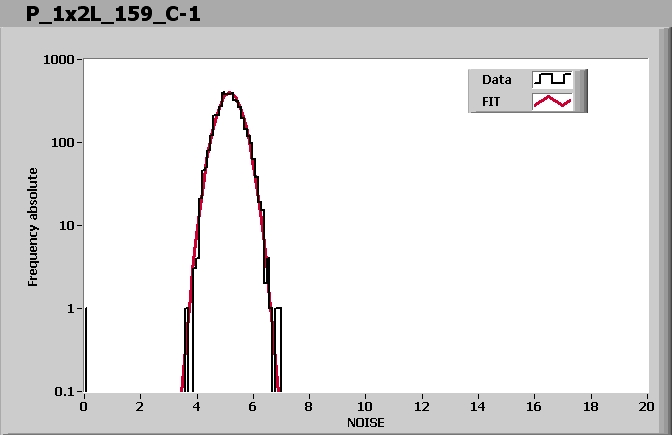

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_159_C-1-580-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_159_C-1-580-noise-ROC0-HISTO.jpg) | MEAN = 5.167142SIGMA = 0.420637 |

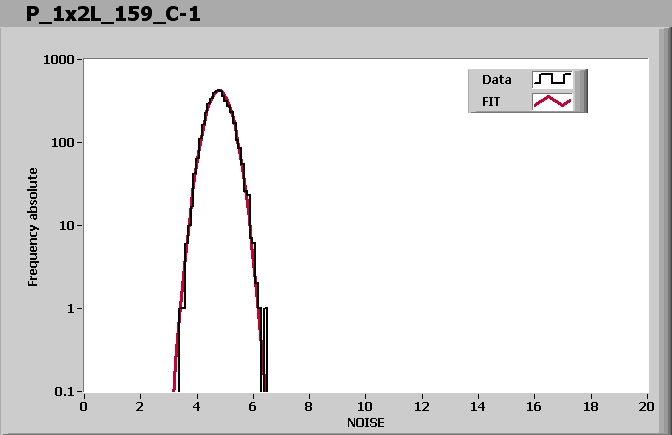

| ROC1 NOISE | ![[IMAGE] of](P_1x2L_159_C-1-580-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_159_C-1-580-noise-ROC1-HISTO.jpg) | MEAN = 4.790786SIGMA = 0.396948 |
Comment (if any): using this plaquette for DOE review tour :)
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 2:39 PM
