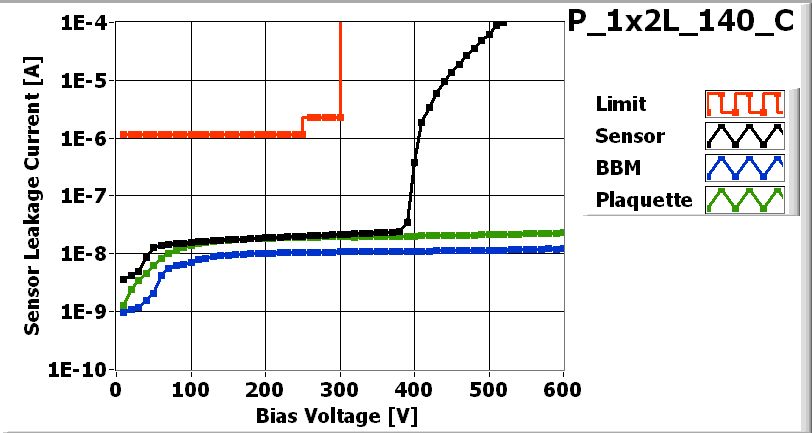

![[IMAGE] of](P_1x2L_140_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_140_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Emily Grace on date 6/1/2007
| Part | ID |
|---|---|
| BBM | BBM_140-1x2T |
| VHDI | 1x2L_285 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DULQEDT | 06B |
| ROC1 | DULQEDT | 26D |
Inspected by Lockwood Gale on date 6/22/2007
| LR_dev | 0.024 |
| LL_dev | 0.055 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/22/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/22/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/22/2007 by Ozhan Koybasi
P_1x2L_140_Con 6/25/2007 11:57 AM
P_1x2L_140_Con 6/25/2007 11:57 AM
PLAQUETTE TESTED on 2007-06-25 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 162 | 158 | |
| Vana | 149 | 146 | |
| Cal_Del | 80 | 89 | |
| Vthrs_Comp | 89 | 83 | |
| Unbumped | 3 | 0 | |
| Dead | 0 | 1 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 3 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_140_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

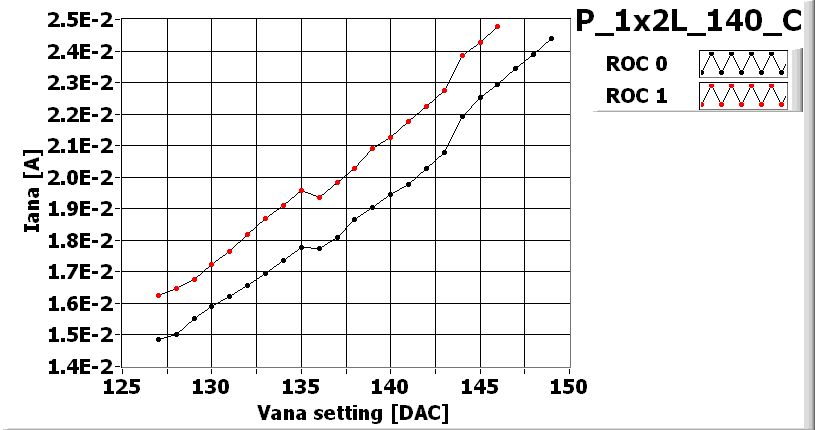

![[IMAGE] of](P_1x2L_140_C_Vana.jpg) |
VANA_XML-File |

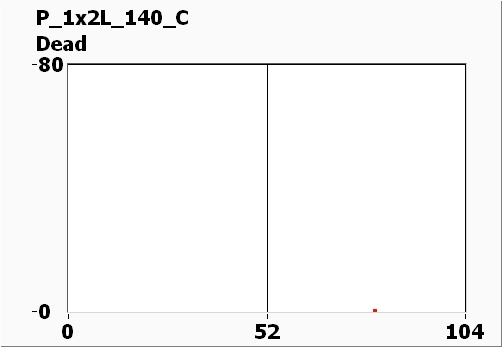

![[IMAGE] of](P_1x2L_140_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x2L_140_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_140_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x2L_140_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 90 |
| Vsf | 145 | 140 |
| VoffsetOp | 110 | 105 |
| VIbias_PH | 100 | 100 |

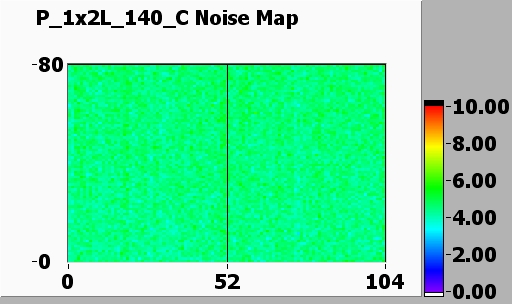

Noise MAP at VMAX
![[IMAGE] of](P_1x2L_140_C-580-noise.jpg)

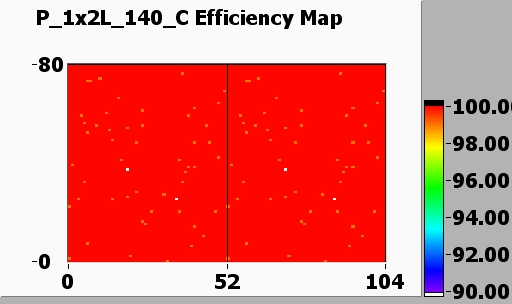

Efficiency MAP
![[IMAGE] of](P_1x2L_140_C-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x2L_140_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x2L_140_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
